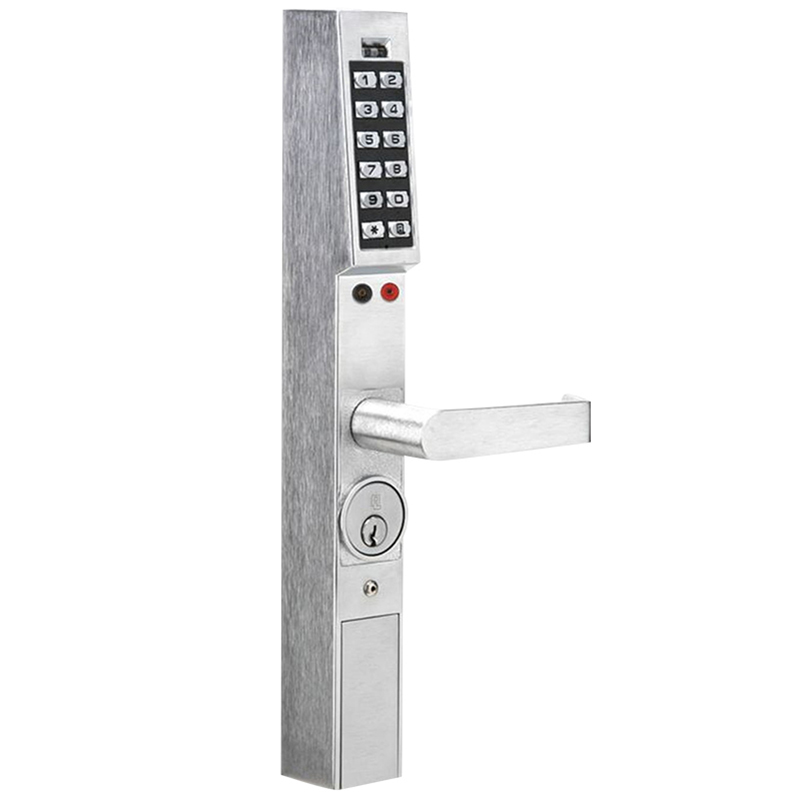

Alarm Lock DL1300/26D1 Access Control

Your Price: $575.41
Retail Price:$887.47
You Save:$312.06(35%)
Pushbutton Aluminum Door Trim, 2000 Users, 40,000 Event Audit Trail, Straight Lever, Satin Chrome
Part Number : ALL_DL130026D1
Availability: 115 In Stock. Free Shipping.
Alarm Lock DL1300/26D1 Access Control

Trilogy Narrow Stile Locks Aluminum door retrofit outside trim for Adam Rite latch locks. Digital Keypad 2000 users 40,000 event audit trail Vandal-resistant Weatherproof Non-handed, fully field-reversible. PC & Keypad programable

  • Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
  • Add keyless convenience to mechanical latch locks from Trilogy's all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
  • DL1200 supports 100 3-6 digit PIN user codes , fingertip programmable
  • DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
  • Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
  • Long-life, battery- operated for 100,000 and 80,000 cycles respectively, on 2 lithium 3V batteries, supplied; low battery alert
  • Compact styling 14-3/8"H x 1-5/8"D x 1-3/4"W
  • Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
  • Backsets 31/32",1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
  • Non-handed; fully field-reversible
  • Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze


Ship via: Can Ship UPS

Access Function: Software Programmable

Access Type: Electronic

Alternate Codes: 140396, ALADL130026D1, DL1300/26D1, DL130026D1

Cylinder Type: 6-Pin Cylinder, Mortise

Door Thickness: 1-3/4"

Finish: 626/US26D

Finish Color: Satin Chrome

Finish Description: Satin Chrome

Function: Key Override, Keyless Entry

Grade: Grade 1

Handing: Non-Handed

Keypad Type: Electronic

Keyway: Schlage C

Knob/ Lever Style: Lever

Limited Warranty: 2 Years

Lock Category: Narrow Stile Locks

Lock Platform: Narrow Stile Trim Latch

Power: Lithium 3V

Programmer: Optional

Proximity Format: Keypad

Reader Technology: Keypad Only

Series: DL1300 Series

Series Name: Trilogy

Software: Optional

Subtype: Pushbutton Lock


Users: 2000

Voltage: 2 3V
