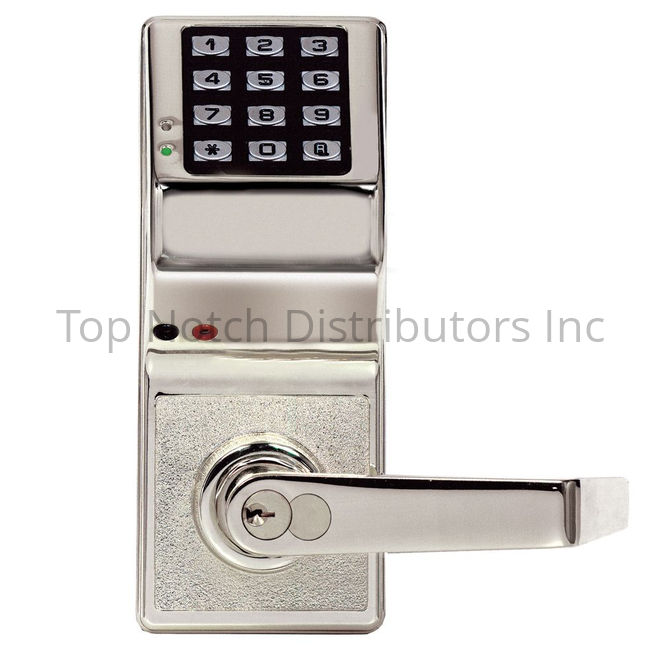

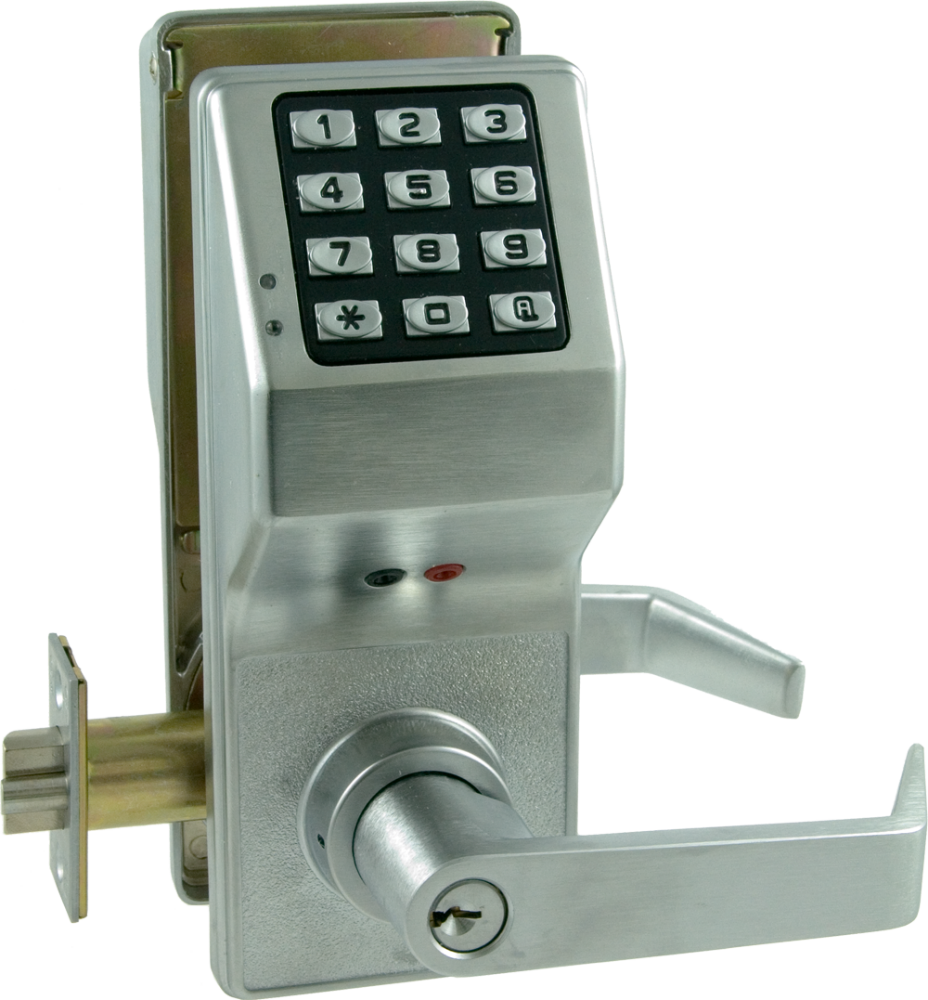

Alarm Lock DL2800/26D Trilogy Electronic Digital Lever Lock with Enhanced Features Satin Chrome Finish

Alarm Lock DL280026D Trilogy Electronic Digital Lever Lock with Enhanced Features Satin Chrome Finish

• Rugged clutch mechanism and Grade 1 durability ensure long life
• 150 scheduled events, including 4 "quick schedules" for programming the 4 most common time schedules in one step
• 200 user codes including: Master, manager, supervisor and basic user.
• Also one-time entry service code
• Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 deg.F to -31 deg.F (+66 deg.C to -35 deg.C)
• Entry allowance from 5-15 seconds
• Greater security with "temporary keypad lockout" after 3 unsuccessful code-entry attempts
• 1000 event audit trail with time/date stamp for a printable record of door access activity by user
• Real time clock allows logging of events to within 1 second of accuracy
• Programmable relays energize when one or more selected events occur
• 4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
• Easy to install in about an hour
• Retrofits most cylindrical locksets and digital locks
• Battery operated; uses 5 AA batteries
• Available in standard key override and interchangeable core models accepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
• Available in standard Trilogy leverset (straight) or with Regal (curved) lever
• Retrofits Most Cylindrical Locksets and Digital Locks
• Free Passage, Group or Total Lock-Out Codes
• Vandalproof All Metal Keypad
• Typical 100,000 Cycle Battery Life
• Non-Handed
