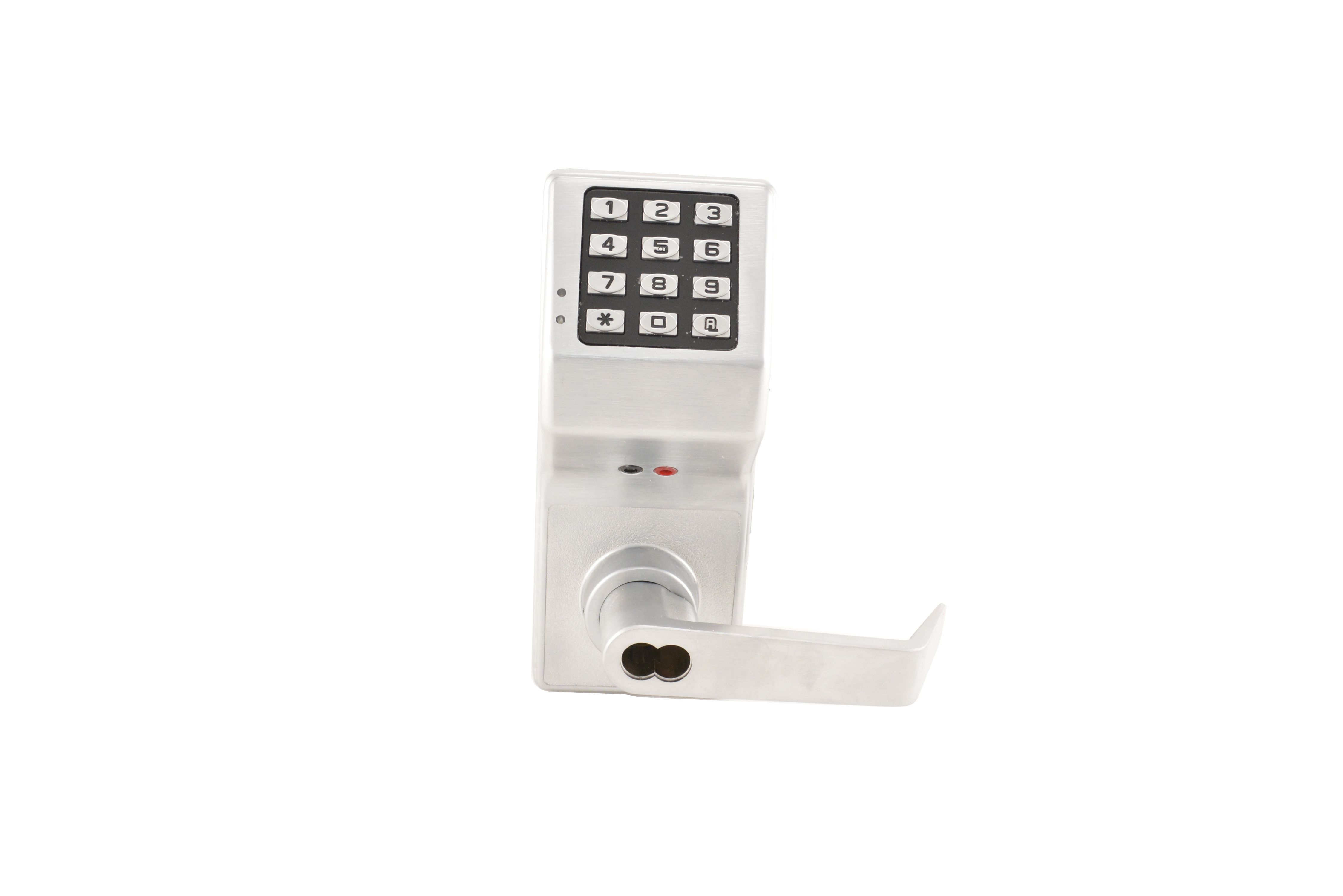

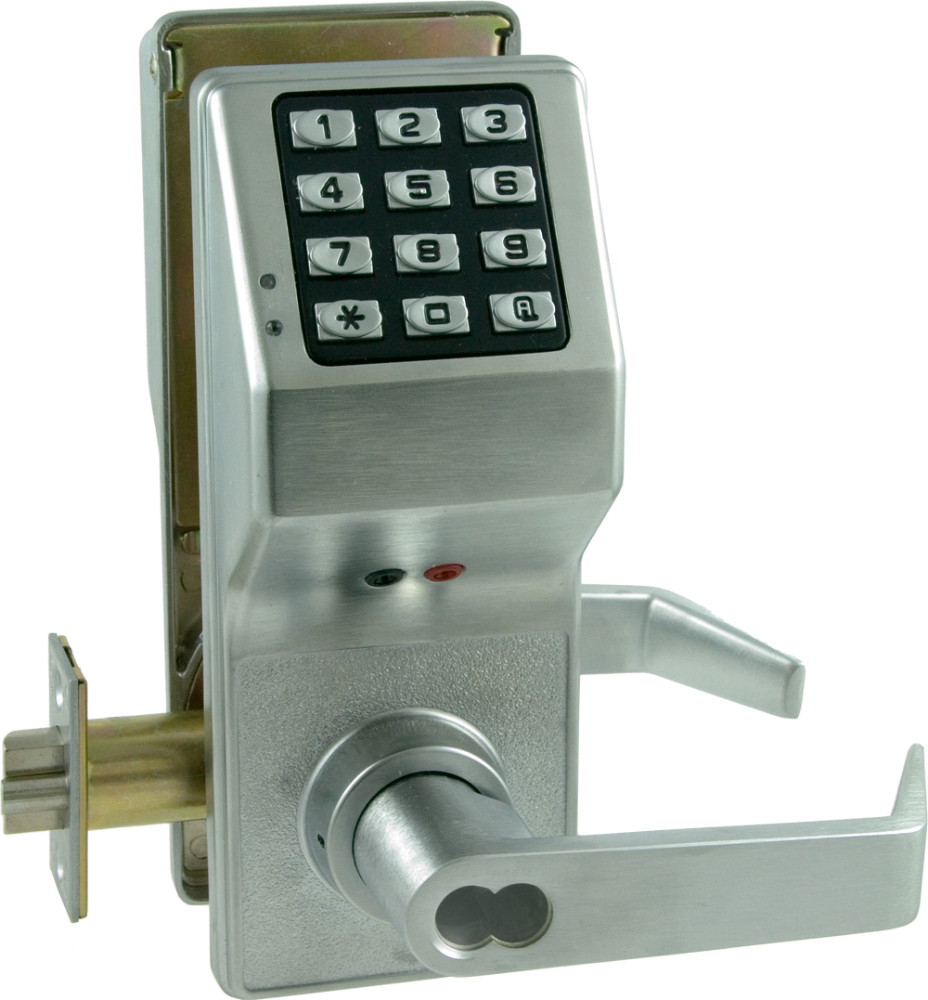

Alarm Lock DL2800IC/26D Trilogy Electronic Digital Lever Lock with Interchangeable Core with Enhanced Features Satin Chrome Finish

Alarm Lock DL2800IC26D Trilogy Electronic Digital Lever Lock with Interchangeable Core with Enhanced Features Satin Chrome Finish

• Rugged clutch mechanism and Grade 1 durability ensure long life
• 150 scheduled events, including 4 "quick schedules" for programming the 4 most common time schedules in one step
• 200 user codes including: Master, manager, supervisor and basic user.
• Also one-time entry service code
• Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 deg.F to -31 deg.F (+66 deg.C to -35 deg.C)
• Entry allowance from 5-15 seconds
• Greater security with "temporary keypad lockout" after 3 unsuccessful code-entry attempts
• 1000 event audit trail with time/date stamp for a printable record of door access activity by user
• Real time clock allows logging of events to within 1 second of accuracy
• Programmable relays energize when one or more selected events occur
• 4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
• Easy to install in about an hour
• Retrofits most cylindrical locksets and digital locks
• Battery operated; uses 5 AA batteries
• Available in standard key override and interchangeable core models accepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
• Available in standard Trilogy leverset (straight) or with Regal (curved) lever
• Retrofits Most Cylindrical Locksets and Digital Locks
• Free Passage, Group or Total Lock-Out Codes
• Vandalproof All Metal Keypad
• Typical 100,000 Cycle Battery Life
• Non-Handed
