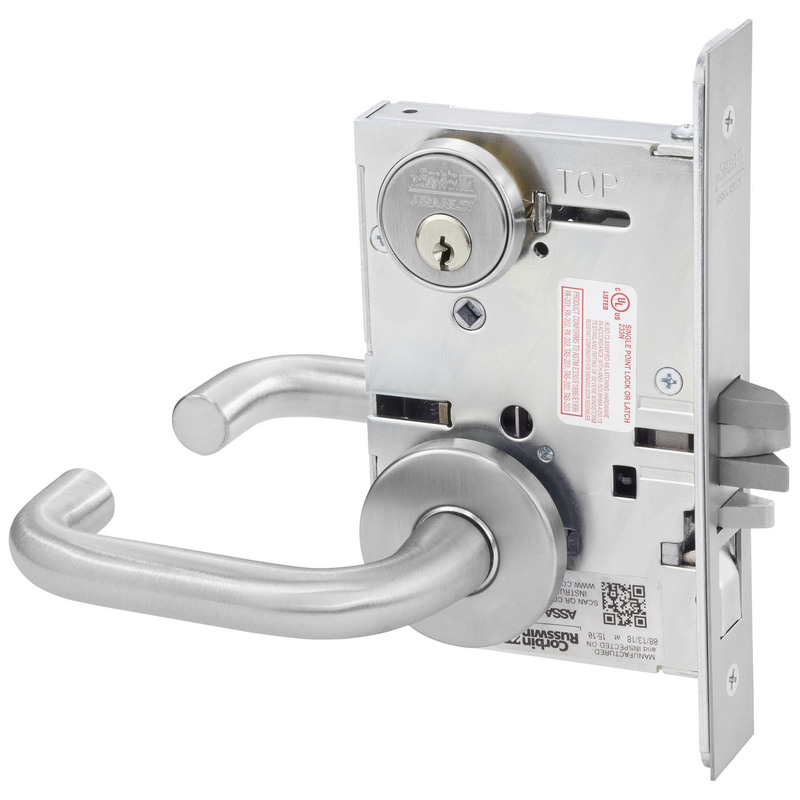

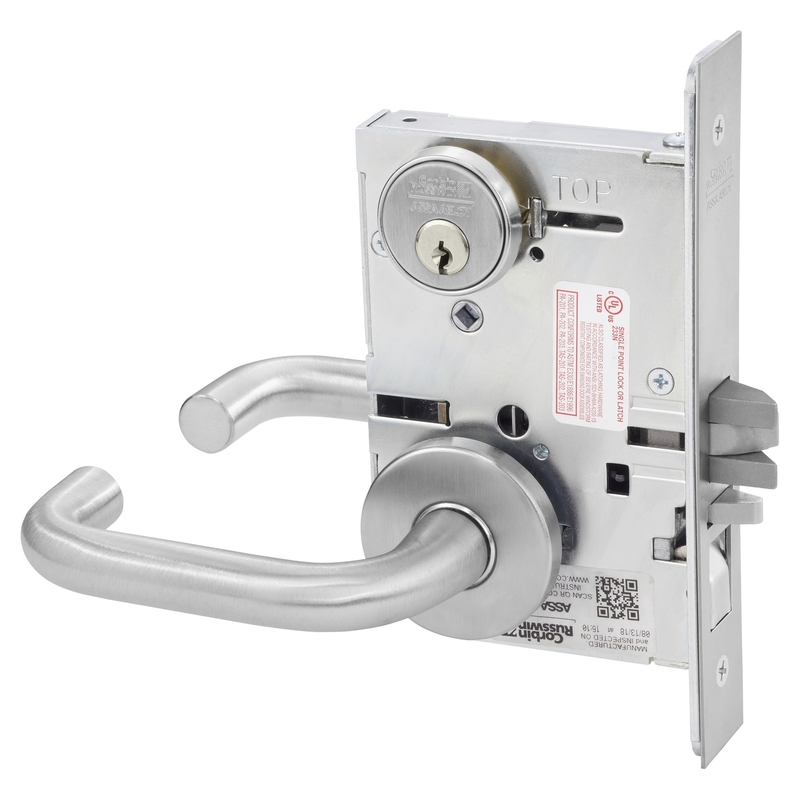

Corbin Russwin ML2051LWA626 Single Cylinder Office Mortise Lock with Wrought Lustra Lever and A Rose L4 Keyway Satin Chrome Finish is a testament to over two centuries of craftsmanship and innovation. Designed for commercial and institutional settings, this mortise lock ensures both security and style. Its direct drive performance provides consistent torque and force during lever rotation, while the crisp and firm lever return eliminates any sagging. This lock is versatile, available in 63 mechanical and electrified functions, offering options for vandal resistance and behavioral health. It integrates seamlessly with existing Corbin Russwin key systems, including the patented Access 3® and Pyramid, as well as various access control platforms. With a robust wrought brass construction, the lock features a satin chrome finish that not only enhances durability but also adds a modern touch to any door. The lock accommodates a 2-3/4" backset and is suitable for doors with a thickness of 1-3/4". The ANSI straight lip strike and the 1-1/4" x 8" latch faceplate dimension ensure compatibility with standard door frames. Backed by a limited 10-year warranty, the Corbin Russwin ML2051LWA626 is a reliable choice for those seeking a blend of functionality and contemporary design.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 103870, 570127, CORML2051LWA626, ML2051-LWA-626, ML2051LWA626
Ansi Function: F04 - Entry/Office
Baa Qualified: Yes
Backset: 2 3/4" Backset
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Type: Conventional Cylinder

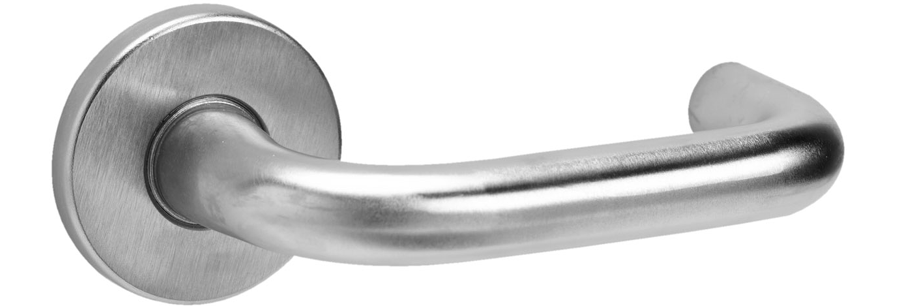

Design: Wrought Lustra Lever and A Rose
Dimension: 5-1/8" Lever with 2-1/2" Projection and 2-1/4" Rose
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 51-Entrance or Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Knob/ Lever Design: LW
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 1", 3/4"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: LW - Lustra
Limited Warranty: 10 Years
Lock Category: Mortise Lock
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Wrought Brass
No Of Inners: 1
No Of Pins: 6 Pin
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: A - Rose
Rose/ Escutcheon Size: 2-1/4"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: ML2000 Series
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise
Supplier: Corbin Russwin
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL - UL10C Positive Pressure
