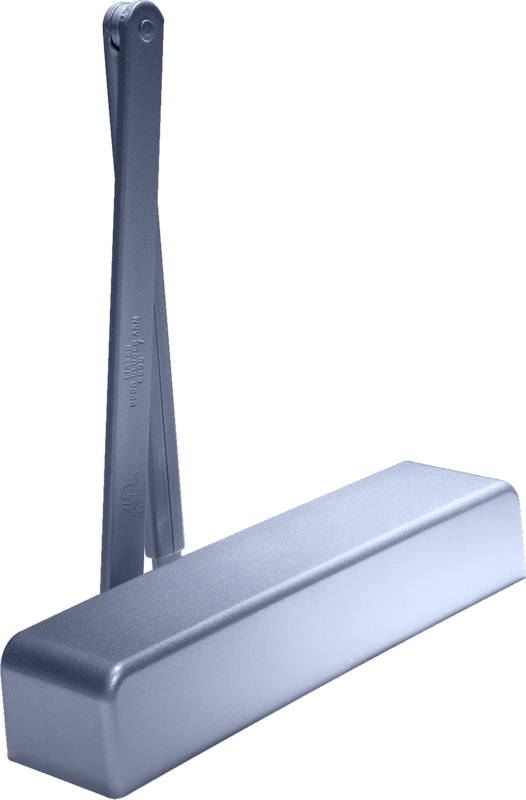

Dormakaba 8916AF89P689 Flat Form Tri Pack Surface Closer with Full Plastic Cover Aluminum Finish

Dorma 8916AF89P689 Flat Form Tri Pack Surface Closer with Full Plastic Cover Aluminum Finish

• Available as 8916 with fully adjustable spring sizes 1–6.
• Size 1 (5 lb opening force) meets interior barrier-free AD requirements.
• 8916 may be used on doors up to 48" wide interior (42" wide exterior) and up to 180 lb.
• 8956 available with adjustable spring sizes of 5–6 +50 percent for use on exceptionally wide, tall, or heavy doors.
• Non-handed for regular, top jamb, and parallel arm applications.
• Backcheck (BC) valve (standard) provides adjustable intensity hydraulic cushioning, preventing uncontrolled door opening to protect door and frame during abusive or abrupt opening.
• POS backcheck positioning valve (standard) maintains an effective backcheck range on parallel arm applications.
• Valve is accessible with the closer installed.
• Full adjustment using BC, POS, Sweep and Latch valves standard.
• Optional delayed action (DA) adjustable with separate independent valve to allow for unobstructed passage through opening.
• Full plastic cover standard.
• Full metal or full plastic slotted covers optional.
• All tamper-resistant (hex key) valve adjustments (including POS) accessible with closer installed.
• Standard components required for three most popular mounting configurations (Reg., TJ, PA).
• Standard fasteners include separate wood and metal screws and SN1 sex nuts for 1-3/4" thick doors.
• Full-sized templates enable accurate installation.
• A variety of specialty arm options, interchangeable across most DORMA surface closer models.
• Full complement of optional plates and brackets available for special applications.
• Screw options include self drilling and tapping screws (DPK89) for steel door and frame applications or self tapping screws (TPK89) for aluminum door and frame applications.
• Stainless steel (STA Series) model available.
• Available with holder/release with (EMR Series) or without (EMF Series) photoelectric detector to control spread of smoke and fire.
• Long Term Performance
• Adjustable Spring Sizes and Power
• Meets Barrier Free Requirements
• Adjustable Backcheck
• Backed by 25 Year Warranty
