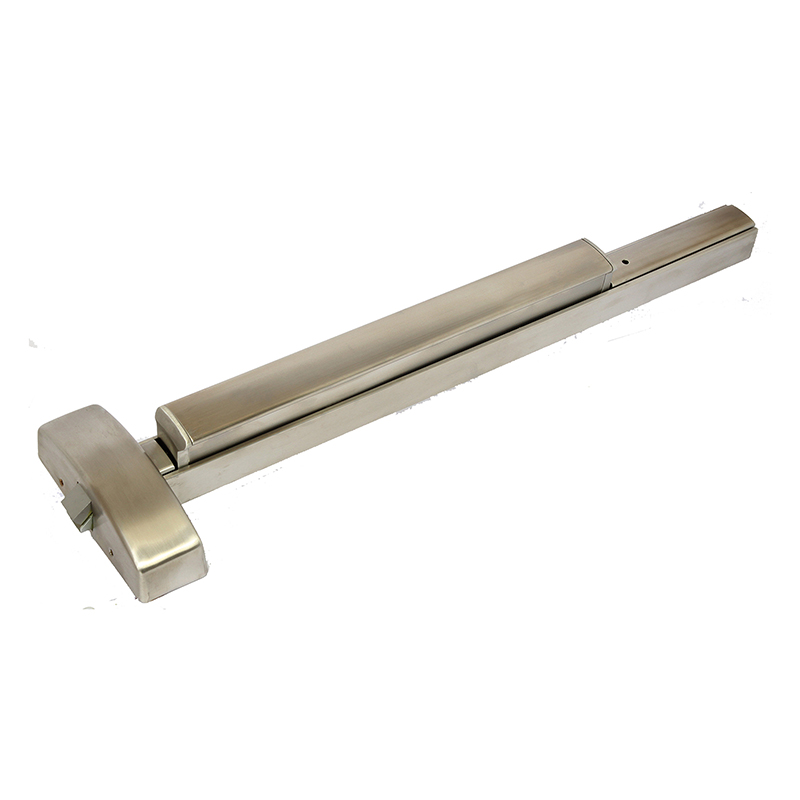

PHI 2108-630-36 Precision Hardware Inc Exit Device

Your Price: $1,274.94
Retail Price:$2,451.00
You Save:$1,176.06(48%)
Rim Exit Device, Key Controls Lever/Knob, 3 Ft. Device, Satin Stainless Steel
Part Number : PHI_210863036
Availability: 16777778 In Stock.
PHI 2108-630-36 Precision Hardware Inc Exit Device

EO=Exit Only=No Trim Add Trim for Classroom Feature
  • RETROFIT APPLICATIONS - The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers' mounting hole locations.
  • 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R"
  • DOORS - For all types of single and double doors with a mullion.
  • Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening.
  • For thicker doors, consult factory.
  • Furnished standard for 1-3/4" thick, 3'-0" wide opening.
  • DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
  • FUNCTIONS - Functions are field selectable except for the Double Cylinder option.
  • The device is furnished for a desired function if specified.
  • If not specified the "03" function is furnished standard.
  • CYLINDERS - Rim Type, not furnished standard. Specify when required.
  • DOUBLE CYLINDER - Handed, "10" Function available.
  • Requires two rim type cylinders
  • not furnished standard.
  • BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
  • 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
  • CHASSIS - Investment Cast Steel, Zinc Dichromated.
  • LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
  • STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
  • No. S988, optional strike for use on Aluminum Door applications, please specify when ordering.
  • No. S458, optional strike for use on Mullion applications, please specify when ordering.
  • DOGGING - 1/4" turn hex key dogging standard.
  • NOT available on Fire Exit Hardware.
  • TOUCHBAR HEIGHT - 39-15/16" from floor standard.
  • May be varied as situation dictates.
  • REVERSIBLE - Reversible for all functions and Trims.
  • Standard packaging RHRB.

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: 2108-630, 2108-630-36, 2108630, 210863036, PHG2108-630

Baa Qualified: Yes

Bar Style: Push Bar

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Country of Origin: Usa

Device Length: 36 In.

Device Type: Rim

Device Width: 36"

Dogging Options: Hex Key Dogging

Door Application: Panic Devices & Exit Alarms

Door Material: All Types

Door Thickness: 1-3/4" to 2-1/4"

Door Type: Aluminum, Metal, Wood

Door Width: 36"

Exit Device Category: Rim device

Exit Device Type: Rim Exit

Finish: 630

Finish Code: 630

Finish Color: Satin Stainless Steel

Finish Description: Satin Stainless Steel

Fire Rated: No

Function: Entry, Office

Grade: Grade 1

Hand: Field Reversible

Handing: Non-Handed

Includes Trim: No

Limited Warranty: 5 Years

Mechanical Function: Classroom

Minimum Style Size: 4-1/4"

Physical Appearance: Wide Stile Pushpad

Reversible: Yes

Series: 3R0

Strike Standard: S300

Subtype: Exit Device

Supplier: Stanley

Trim Style: Back Plate

Type: PANIC DEVICES & EXIT ALARMS
