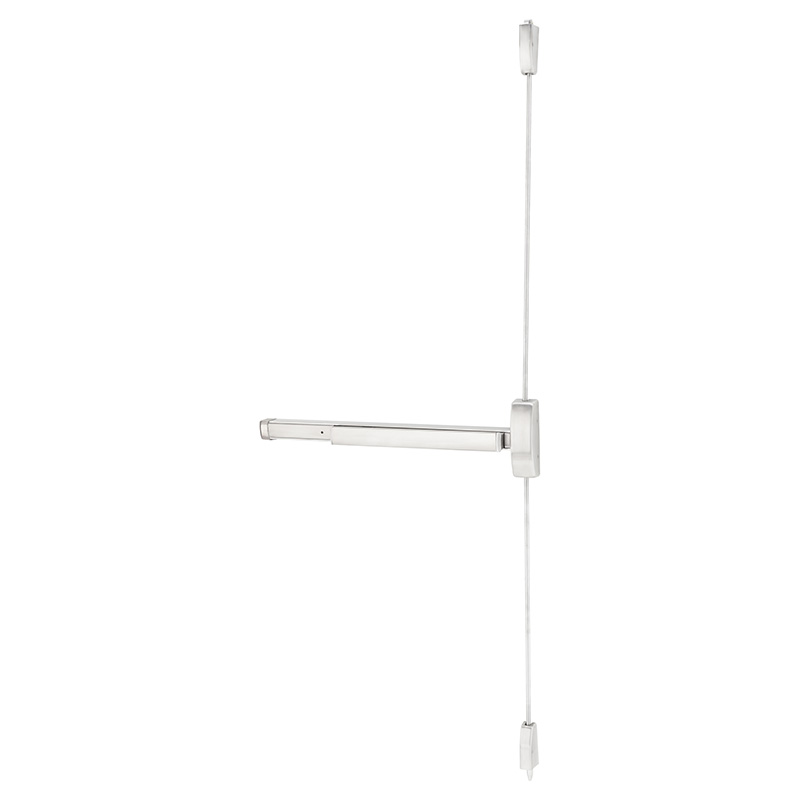

PHI 2203-630-36 Precision Hardware Inc Exit Device

Your Price: $1,763.10
Retail Price:$3,390.00
You Save:$1,626.90(48%)

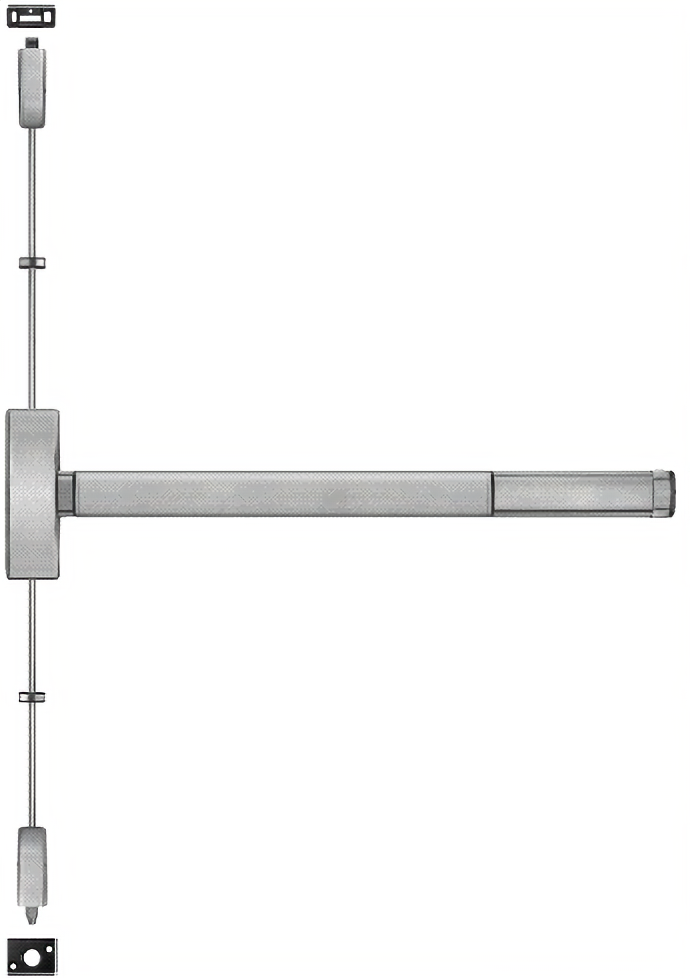

Surface Vertical Rod Exit Device, Key Retracts Latchbolt, 3 Ft. Device, Satin Stainless Steel
Part Number : PHI_220363036
Availability: 55 In Stock.
PHI 2203-630-36 Precision Hardware Inc Exit Device

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nationÍs largest healthcare and educational facilities prefer the Apex for itÍs aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
  • RETROFIT APPLICATIONS - The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers' mounting hole locations.
  • 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R"
  • DOORS - For all types of single and double doors with a mullion.
  • Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening.
  • For thicker doors, consult factory.
  • Furnished standard for 1-3/4" thick, 3'-0" wide opening.
  • DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
  • FUNCTIONS - Functions are field selectable except for the Double Cylinder option.
  • The device is furnished for a desired function if specified.
  • If not specified the "03" function is furnished standard.
  • CYLINDERS - Rim Type, not furnished standard. Specify when required.
  • BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components
  • US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components
  • CHASSIS - Investment Cast Steel, Zinc Dichromated.
  • TOP LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw
  • Note: All vertical rod lengths are based on 39-15/16" exit device horizontal centerline.
  • BOTTOM LATCHBOLT - teel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
  • TOP STRIKE - No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
  • BOTTOM STRIKE - No. S460, Flush mounted, Steel, Black Powder Coated.
  • DOGGING - 1/4" turn hex key dogging standard.
  • NOT available on Fire Exit Hardware.
  • TOUCHBAR HEIGHT - 39-15/16" from floor standard.
  • Specify required height if other than standard.
  • REVERSIBLE - Reversible for all functions and Trims.
  • Standard packaging RHRB.

Attributes

Ship via: Can Ship UPS

Alternate Codes: 132201, 2203-630, 2203-630-36, 220326D, 2203630, 220363036, PHG2203-630, PHG220326D

Baa Qualified: Yes

Bar Style: Push Bar

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Country of Origin: Usa

Device Length: 36 In.

Device Type: Surface Vertical Rod

Device Width: 36"

Dogging Options: Hex Key Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Metal, Wood

Door Width: 36"

Exit Device Category: Surface vertical rod

Exit Device Type: SVR - Surface Vertical Rod

Finish: 630

Finish Code: 630

Finish Color: Satin Stainless Steel

Finish Description: Satin Stainless Steel

Fire Rated: No

Function: Night Latch

Grade: Grade 1

Handing: Field Reversible

Includes Trim: No

Limited Warranty: 5 Years

Options: Cylinder Prep

Physical Appearance: Wide Stile Pushpad

Series: 3R0

Subtype: Exit Device

Supplier: Stanley

Type: PANIC DEVICES & EXIT ALARMS
