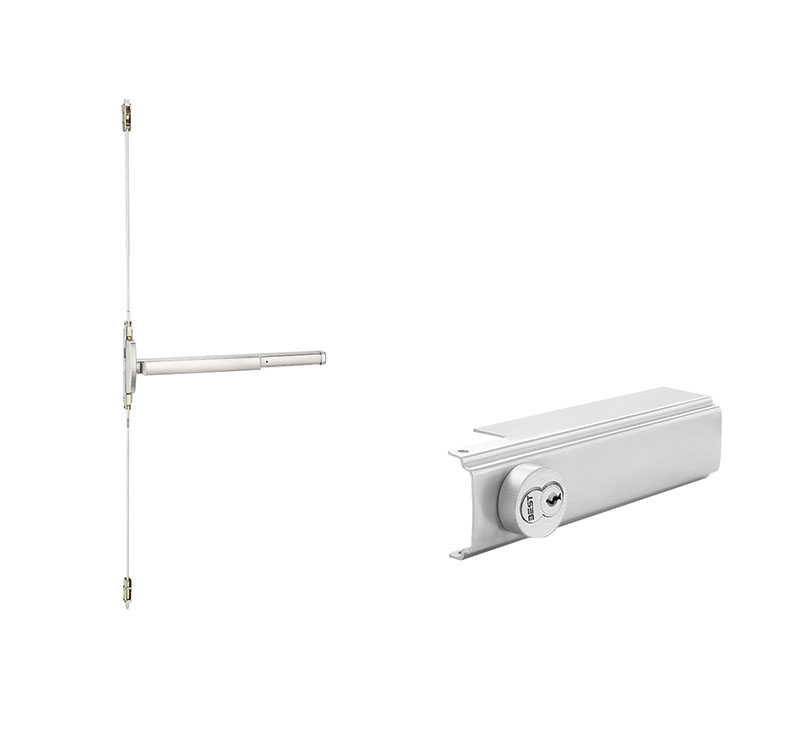

Images may not represent actual product and finish
Images may not represent actual product and finish

PHI 5101-689-36 Precision Hardware Inc Exit Device

Your Price: $412.02
Retail Price:$792.00
You Save:$379.98(48%)
Rim Exit Device, Exit Only, Cover Plate Prep, 3 Ft. Device, Aluminum Painted
Part Number : PHI_510168936
Availability: 16777778 In Stock.
PHI 5101-689-36 Precision Hardware Inc Exit Device

The Reliant 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. All Reliant 5000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. The Reliant Series is available in durable powder coat finishes with a variety of trim styles and functions. The chassis is constructed of stainless steel and covers the standard type 161 door preparation.
  • RETROFIT APPLICATIONS - The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers' mounting hole locations.
  • 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R"
  • DOORS - For all types of single and double doors with a mullion.
  • Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening.
  • For thicker doors, consult factory.
  • Furnished standard for 1-3/4" thick, 3'-0" wide opening.
  • FUNCTIONS - Universal Exit Device, add Trim for the desired function.
  • ACTIVE CASE - Stainless Steel
  • TOUCHBAR SUB-ASSEMBLY - Zinc Dichromate plated Heavy Wrought Steel.
  • TOUCHBAR ASSEMBLY - Powder Coated Heavy Wrought Steel.
  • STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, specify when ordering. No. S458, optional strike for use on Mullion applications, specify when ordering.
  • No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
  • No. S988, optional strike for use on Aluminum Door applications, specify when ordering.
  • No. S458, optional strike for use on Mullion applications, specify when ordering.
  • LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
  • DOGGING - 1/4" turn hex key dogging standard.
  • NOT available on Fire Exit Hardware.
  • TOUCHBAR HEIGHT - 40-5/16" from floor standard.

Features

  • ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, grade 1.
  • Dogging: 1/4 turn hex key dogging standard. Not available on fire exit hardware.
  • Active Case & Trim: Covers ANSI A115.2 (type 161) or ANSI A115.18 cylinder lock preparation. Active case through bolts in ANSI A115.18 preparation without additional machining.
  • Touchbar Sub-Assembly: Zinc dichromate plated heavy wrought steel.
  • Functions: Universal exit device, add trim for the desired function.
  • Touchbar Assembly: Powder coated heavy wrought steel.
  • Latchbolt: Stainless steel, deadlocking, 3/4" throw.
  • Touchbar Height: 40-5/16" from floor standard. May be varied as situation dictates.
  • Active Case: Stainless steel.
  • Active Case Cover & Endcap: High impact thermoplastic.
  • Strikes: No. S300, Investment cast stainless steel, black powder coated furnished standard. No. S988, optional strike for use on aluminum door applications, specify when ordering. No. S458, optional strike for use on Mullion applications, specify when ordering.
  • Doors: For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide openings.

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: 139081, 5100-689-36, 5100689-36, 5100689-36IN, 510068936, 510068936IN, 5101-689-36, 510168936, PHG5100-689-36, PHG5100689-36, PHG5100689-36IN

Baa Qualified: Yes

Bar Style: Push Bar

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Country of Origin: Usa

Device Length: 36 In.

Device Type: Rim

Device Width: 36"

Dogging Options: Hex Key Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Metal, Wood

Door Width: 36"

Exit Device Category: Rim device

Exit Device Type: Rim Exit

Finish: 689

Finish Code: 689

Finish Color: Satin Aluminum

Finish Description: Aluminum Painted

Fire Rated: No

Function: Exit Only

Grade: Grade 1

Handing: Non-Handed

Includes Trim: No

Physical Appearance: Wide Stile Pushpad

Series: 3R0

Subtype: Exit Device

Supplier: Stanley

Type: PANIC DEVICES & EXIT ALARMS
