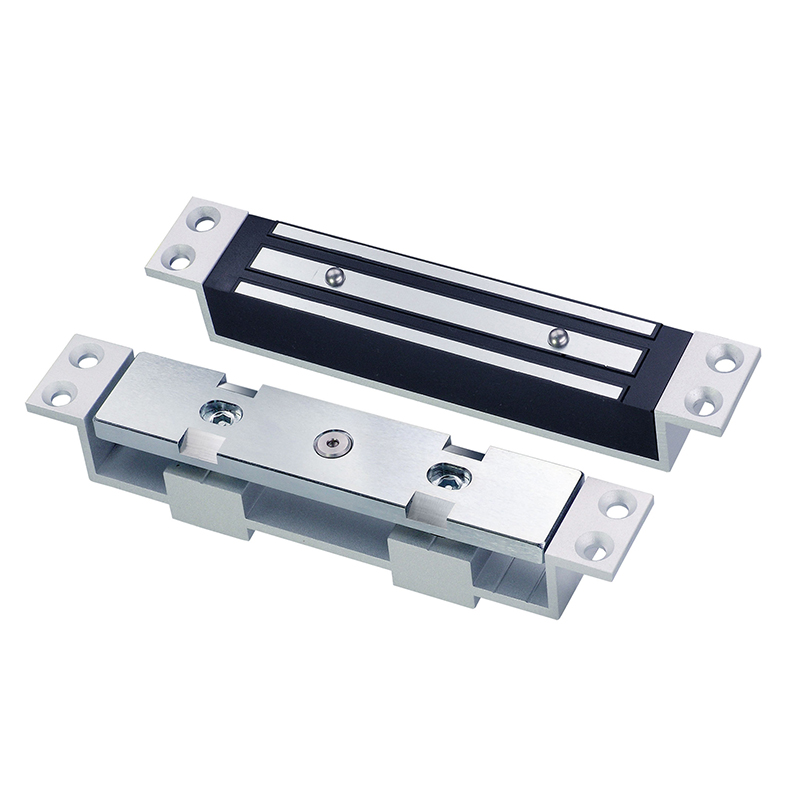

ROFU 8035 Electrical Accessories

Images may not represent actual product and finish

Your Price: $330.00

Retail Price:$550.00

You Save:$220.00(40%)

MAGLOCK, MINI SHEAR 1200LBS 12/24VDC

Part Number : ROF_8035

Availability: 45 In Stock.

Quantity

ROFU 8035 Electrical Accessories

MAGLOCK, MINI SHEAR 1200LBS 12/24VDC

Holding Force: 1200lbs
12vdc / 24vdc field selectable
Dimensions: 7-1/8" (L) x 1-3/8" (W) x 1-1/8" (D)
Maximum Gap (between mag and armature plate) : 2mm
Fail Safe: Releases instantly when power is disconnected
Fail Alarm: May be released upon activation of fire alarm
Current Draw: 420mA at 12vdc, 210mA at 24vdc
Magnetic Bond Sensor output: SPDT rated: 0.5A/125VAC ; 1A/24VDC (on -002 model only)
Magnet and Armature finish: Zinc plating
Designed for dual swinging doors
Can be installed horizontal or vertical (if used vertically, ensure you remove springs)
No residual magnetism
Optional housings available for magnet or armature, part # 21036,21054 and 21037 U brackets for glass door installation

Ship via: Can Ship UPS

Access Type: Maglock

Alternate Codes: 8035

Category: Access Control, Maglocks, Single Maglocks

Finish: Zinc Plated

Finish Color: Zinc Plated

Handing: Non-Handed

Holding Force: 1200 lbs

Maglock Type: Shear Mini Lock

Mounting: Horizontal, Vertical

Series: ROFU Parts and Accessories

Size: 7-1/8" x 1-3/8" x 1-1/8"

Subtype: Electrical Accessories

Type: ACCESS CONTROL

Voltage: 12V DC, 24V DC, Field Selectable
