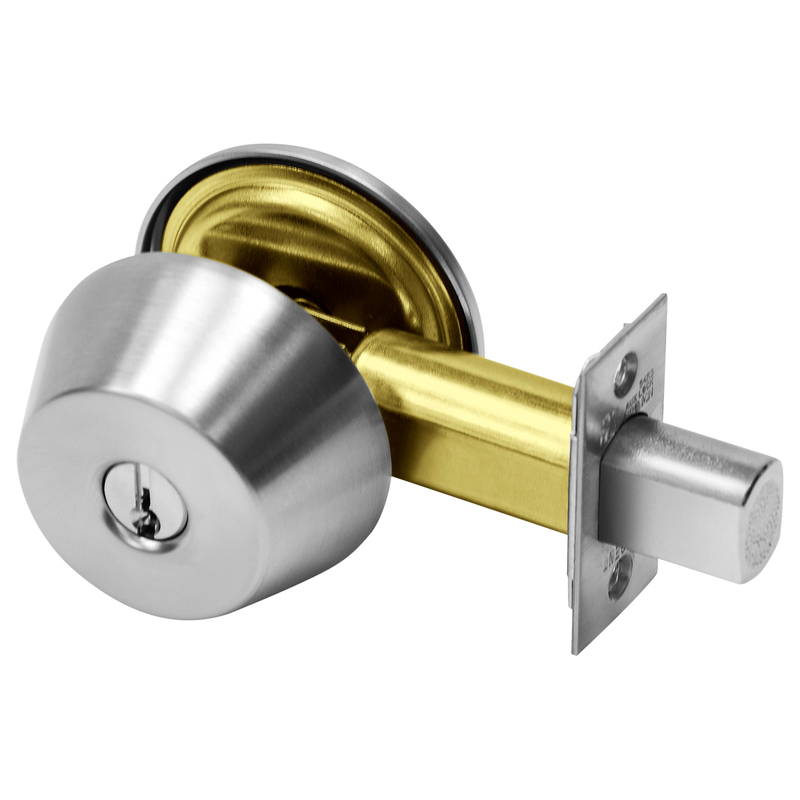

Sargent 48526D Grade 1 Single Cylinder Deadbolt, 2-3/4" Backset, Satin Chrome FinishSargent 48526D Single Cylinder Grade 1 Deadbolt with a 2-3/4" Backset, 404 Strike, and LA Keyway Satin Chrome Finish offers superior security for commercial and industrial applications. As a part of the robust 480 Series, this deadbolt is ANSI/BHMA Grade 1 certified, ensuring it meets the highest standards for durability and performance. Its non-handed design allows for easy installation on doors ranging from 1-3/8" to 1-3/4" thick, accommodating various architectural needs. This deadbolt features a sleek satin chrome finish that not only enhances aesthetic appeal but also provides enhanced resistance to wear and tear. Its UL-cUL fire rating of up to 3 hours adds an extra layer of safety, making it a reliable choice for high-risk environments. The deadbolt is equipped with a 6-pin LA keyway, ensuring security through a high level of pick resistance. Additionally, the 404 strike plate, measuring 1-1/8" x 2-3/4", complements the deadbolt's robust construction. Backed by a 1-year limited warranty, the Sargent 48526D is designed to provide peace of mind, combining functionality with a contemporary design that fits seamlessly into any commercial setting.
Single Cylinder Grade 1 Deadbolt with 2-3/4" Backset, 404 Strike, and LA Keyway Satin Chrome Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Masterkeying: Can be masterkeyed. Construction key system available
- Specification: Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike
- Front: Wrought brass, bronze or stainless steel 2-1/4" (57 mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard
- Hand: Non-handed, field reversible
- Turn Lever: Non-ferrous
- UL/cUL Listed: UL listed to US and Canadian safety standards
- Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
- Positive pressure: Conforms to standards UL 10 C and UBC 7-2 (1997)
- UL-cUL Fire-Rated Up to 3 Hours
- ANSI/BHMA Grade 1 Certified
- Multiple functions and finishes offered
- Non-handed
- This series is ideally suited for heavy-duty industrial and security applications, the 480 Series is a high-grade cylindrical deadbolt that is certified to ANSI/BHMA A156.36 Grade 1 standards.
- Master keying: Can be master keyed. Construction key system available
Attributes
Ship via: Can Ship UPS
Alternate Codes: 117503, 48526D, 591792
Ansi Function: E0150 - Single Cylinder Deadlock
Application: CM
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Clazz: SG
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Design: Round
Dimension: 2-19/32"
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Function: 485-Single Cylinder x Thumbturn Deadbolt
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Keyway: LA Keyway
Knob/ Lever Style: Inside Thumbturn
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lock Category: Deadbolts
Manufacturer Warranty: 1 Year Limited Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Order_ Qty: 1
Restricted Keyway: No
Series: 480 Series
Strike: 404 Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Size: 2-1/4" x 1-1/8"
Subcategory: Commercial Deadbolts
Supplier: Sargent
Ul Listing Type: UL and cUL 3 Hour Fire Rating
