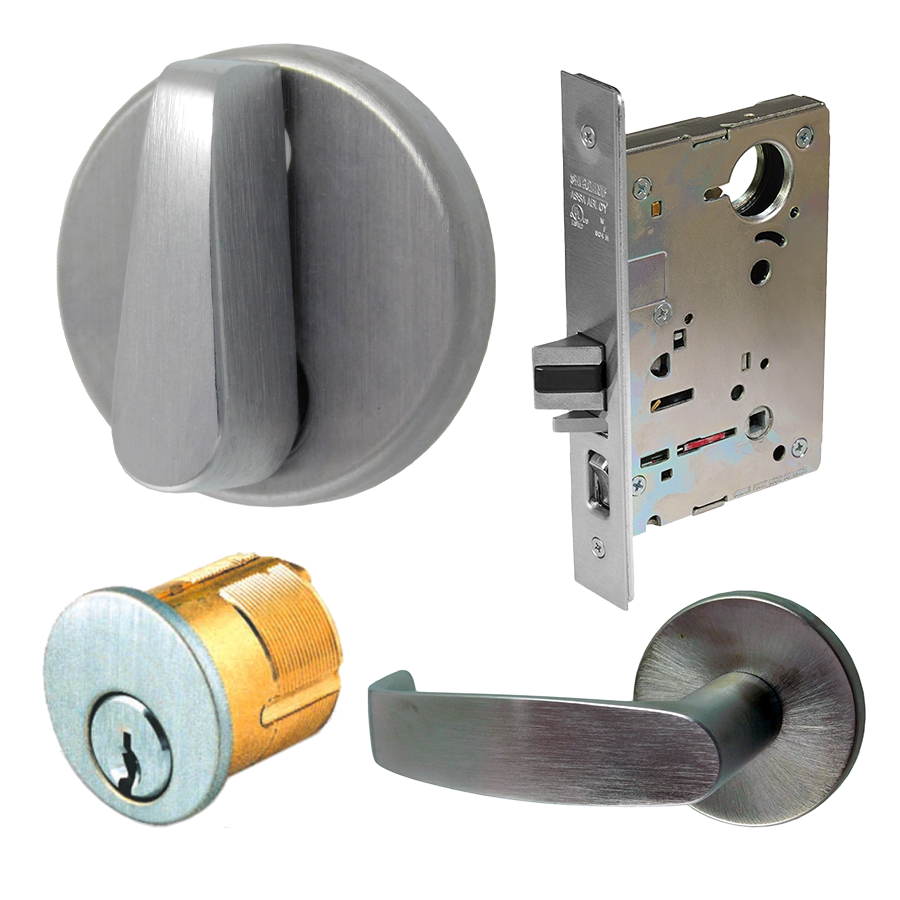

Sargent 8204LNL26D Storeroom Closet Mortise Lock with L Lever and LN Rose is a robust locking solution designed for high-traffic environments. Crafted with a heavy-duty lever style, this mortise lock ensures reliability and security, making it an ideal choice for commercial, healthcare, industrial, and educational buildings. This model incorporates advanced EcoFlex technology, delivering up to 89% energy savings on electromechanical functions while maintaining exceptional performance. With a UL Cycle test rating of 16 million cycles, the Sargent 8204LNL26D is built to withstand the rigors of daily use, assuring long-term durability and peace of mind. Functionality is enhanced by its integration with all SARGENT key systems, including Degree, Signature, KESO, and XC, allowing for versatile access control options. The lock features a reversible handing mechanism, accommodating various door configurations. Finished in sleek satin chrome, the lock not only complements modern aesthetics but also provides a 10-year limited warranty, ensuring quality and reliability. The 2-3/4" backset and 1-1/4" x 8" latch faceplate dimension further enhance its adaptability for standard commercial applications. For secure, efficient, and stylish locking solutions, the Sargent 8204LNL26D is a premier choice.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 123184, 8204LNL26D
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Included: No
Cylinder Type: Mortise Cylinder
Design: L Lever and LN Rose
Dimension: 5" Lever with 2-3/8" Projection, and 2-1/8" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Function: 04-Storeroom or Closet
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: LA
Knob/ Lever Design: L
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: L - Lever
Limited Warranty: 10 Years
Lock Category: Mortise Lock
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Brass
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: LN - Rose
Rose/ Escutcheon Size: 2-1/8"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: 8200 Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Size: 2-1/4" x 1-1/8"
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Supplier: Sargent
Type: LOCK SETS
Ul Listing Type: UL and cUL 3 Hour Fire Rating
