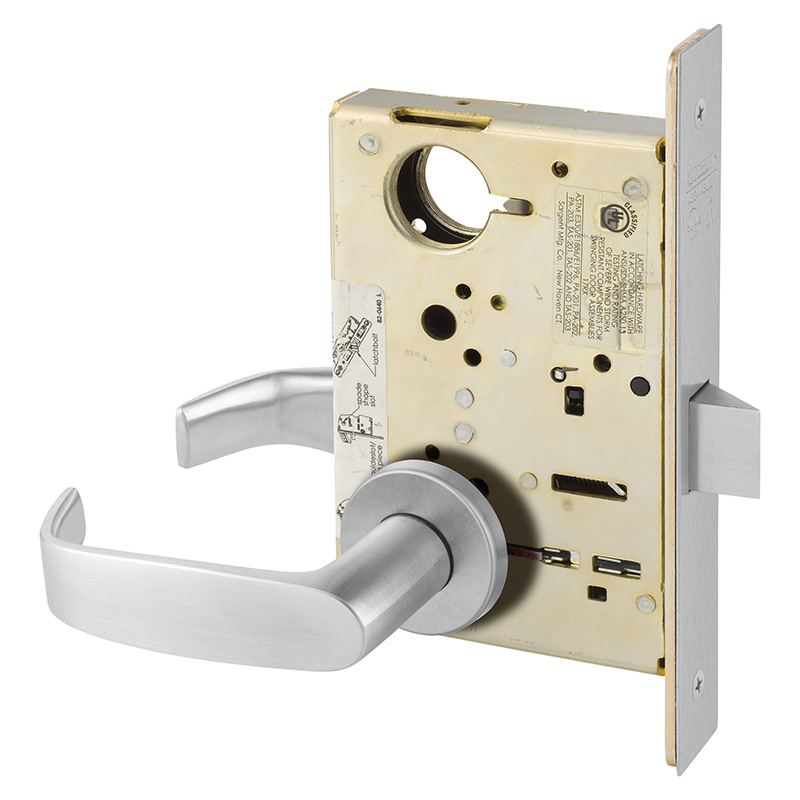

Sargent 8215LNL26D Passage Mortise Lock with L Lever and LN Rose Satin Chrome Finish is a robust solution designed for both commercial and residential applications. This heavy-duty lever-style mortise lock exemplifies durability and security, integrating EcoFlex technology to enhance energy efficiency by up to 89% across all electromechanical functions. Tested to exceed industry standards, the lock has successfully completed the UL Cycle Above and Beyond test at an impressive 16 million cycles, ensuring long-lasting reliability. It is compatible with all Sargent key systems, including Degree, Signature, KESO, and XC, making it a versatile choice for various locking needs. Designed for a 2-3/4" backset, the lock accommodates door thicknesses of 1-3/4" and features a sleek satin chrome finish. The 5" lever and 2-1/8" LN rose not only provide a stylish touch but also ensure ease of use. The lock's reversible handing and ASA strike with a 4-7/8" dimension offer flexibility for installation. With a 10-year limited warranty and UL and cUL 3-hour fire rating, the Sargent 8215LNL26D is a reliable choice for architects, builders, and homeowners seeking a secure and efficient locking solution.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 117590, 8215LNL26D
Ansi Function: F01 - Passage
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Included: No
Cylinder Type: Mortise Cylinder
Design: L Lever and LN Rose
Dimension: 5" Lever with 2-3/8" Projection, and 2-1/8" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Function: 15-Passage or Closet
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Knob/ Lever Design: L
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Springlatch
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Spring Latch (Unguarded)
Lever Knob Design: L - Lever
Limited Warranty: 10 Years
Lock Category: Mortise Lock
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Brass
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: LN - Rose
Rose/ Escutcheon Size: 2-1/8"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: 8200 Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Size: 2-1/4" x 1-1/8"
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise
Supplier: Sargent
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL 3 Hour Fire Rating
