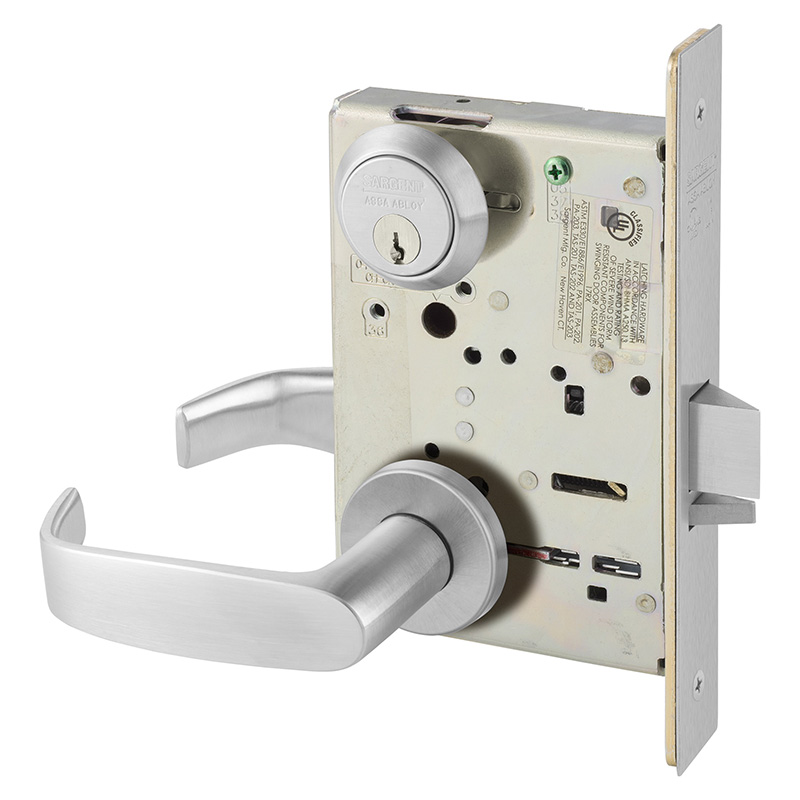

Sargent 8237LNL26D Classroom Mortise Lock with L Lever and LN Rose with LA Keyway Satin Chrome Finish combines robust security with modern efficiency. This heavy-duty lever-style mortise lock is designed for high-traffic environments, making it ideal for educational institutions and commercial buildings. Utilizing innovative EcoFlex technology, it enhances energy efficiency by creating up to 89% energy savings on all electromechanical functions. With a UL Cycle rating that exceeds 16 million cycles (Verification ID: V584148), this lock ensures long-lasting performance and reliability. Its reversible handing offers flexibility for various door configurations, while integration with all SARGENT key systems-including Degree, Signature, KESO, and XC-provides customizable security solutions tailored to your needs. The lock features a sleek satin chrome finish and boasts a 2-3/4" backset, making it compatible with doors measuring 1-3/4" thick. The L lever design and LN rose not only enhance aesthetic appeal but also ensure ease of use. With a 10-year limited warranty and a UL and cUL 3-hour fire rating, the Sargent 8237LNL26D offers peace of mind without compromising on style or security.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 123185, 8237LNL26D
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Included: No
Cylinder Type: Mortise Cylinder
Design: L Lever and LN Rose
Dimension: 5" Lever with 2-3/8" Projection, and 2-1/8" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Function: 37-Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: LA
Knob/ Lever Design: L
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: L - Lever
Limited Warranty: 10 Years
Lock Category: Mortise Lock
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Brass
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: LN - Rose
Rose/ Escutcheon Size: 2-1/8"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: 8200 Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Size: 2-1/4" x 1-1/8"
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Supplier: Sargent
Type: LOCK SETS
Ul Listing Type: UL and cUL 3 Hour Fire Rating
