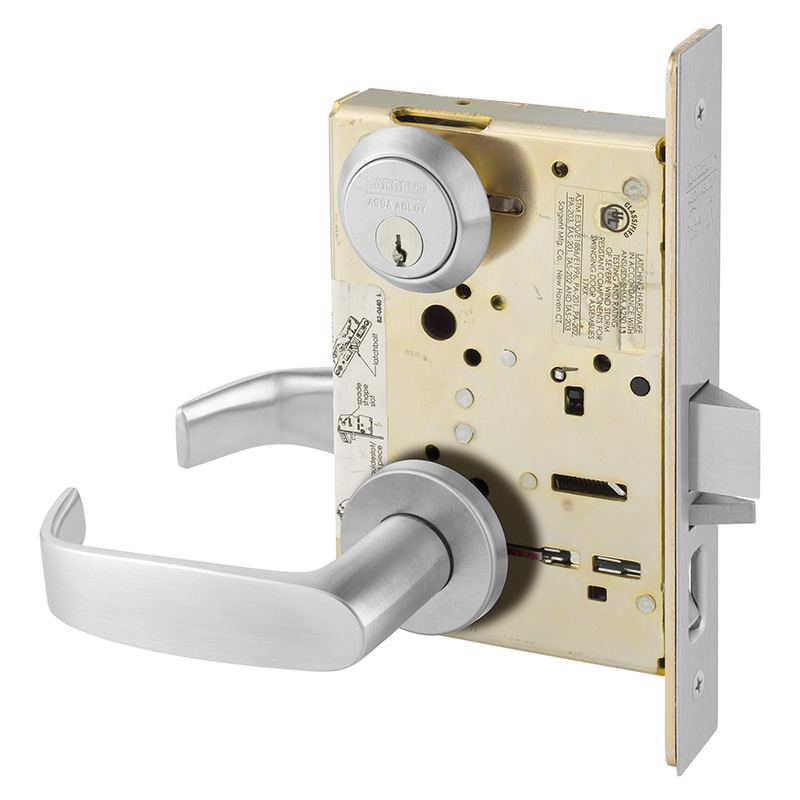

Sargent 8255LNL26D Entry Mortise Lock with L Lever and LN Rose offers a robust solution for securing various types of buildings, including commercial and educational facilities. Designed with a satin chrome finish, this heavy-duty lever-style mortise lock combines durability with aesthetic appeal. The 8255LNL26D utilizes advanced EcoFlex technology, achieving up to 89% energy savings on all electromechanical functions-ideal for environmentally conscious projects. It has passed the UL Cycle Above and Beyond test, enduring 16 million cycles, which speaks to its reliability and longevity. This lock integrates seamlessly with all SARGENT key systems, including Degree, Signature, KESO, and XC, providing flexibility in access control. Featuring a 2-3/4" backset and a reversible handing design, it fits doors ranging from 1-3/4" in thickness. The lock's L lever and LN rose design, coupled with a 2-1/8" rose dimension, ensures ease of use and a streamlined look. Additionally, it includes a ten-year limited warranty, underscoring the product's quality and manufacturer commitment. With 56 available functions, including security and monitoring options, the Sargent 8255LNL26D is a versatile choice for modern architectural needs.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 136790, 8205LNL26D, 8255LNL26D
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4 In. Latch
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Included: No
Cylinder Type: Mortise Cylinder
Design: L Lever and LN Rose
Dimension: 5" Lever with 2-3/8" Projection, and 2-1/8" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Function: 55-Office or Entry
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: LA
Knob/ Lever Design: L
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1-1/4" x 8"
Latch Type: Dead Latch (Guarded)
Lever Knob Design: L - Lever
Limited Warranty: 10 Years
Lock Category: Mortise Lock
Lock Face Size: 8 In. x 1-1/4 In.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Brass
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: LN - Rose
Rose/ Escutcheon Size: 2-1/8"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: 8200 Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Size: 2-1/4" x 1-1/8"
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Supplier: Sargent
Type: LOCK SETS
Ul Listing Type: UL and cUL 3 Hour Fire Rating
