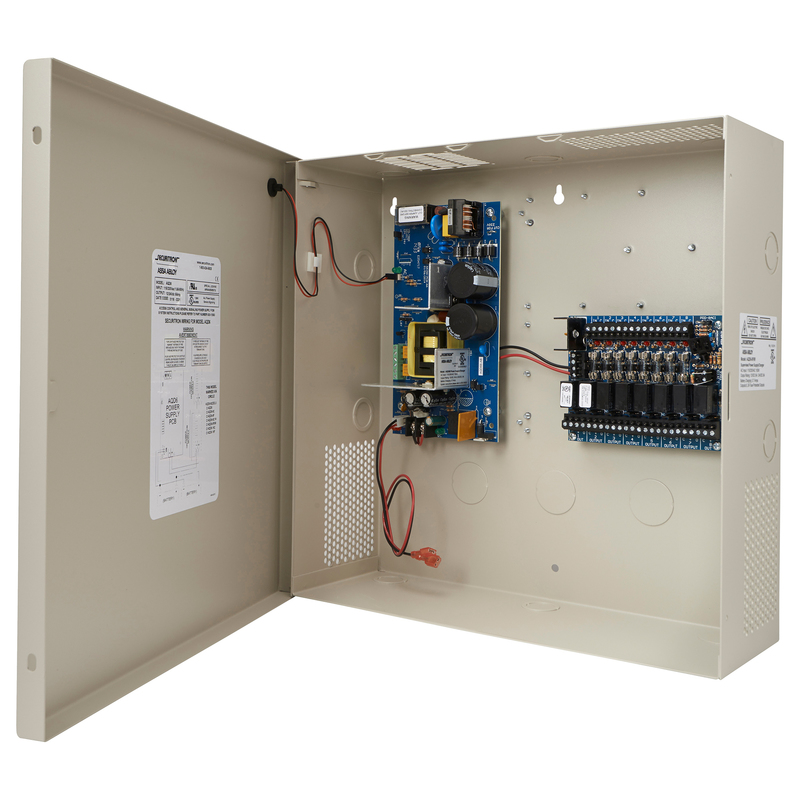

Securitron AQD6-8F8R1 AQD6-8F8R Power Supply

Your Price: $323.76
Retail Price:$585.00
You Save:$261.24(45%)
Power Supply, 12/24VDC 6A, 8 Output, Fuse, Fire Relay
Part Number : STR_AQD68F8R1
Availability: 15176201 In Stock.
Securitron AQD6-8F8R1 AQD6-8F8R Power Supply

The Securitron AQD6 Series of switching power supplies are dual voltage supervised units with a battery charger designed to power magnetic locks, electric strikes, card readers, sensors, access control boards and other devices in access control systems. The AQD6 Series can also be used to power DC cameras and other DC locking equipment. These units provide field selectable 6A at 12 or 24 VDC with up to 16 independently controlled power limited outputs. The AQD6 is Securitron's first power supply series that meets UL 294 6th Edition. Dual-voltage 6A 12 or 24 VDC field selectable continuous output. Tolerates brownout or overvoltage input ± 15% of nominal voltage. Thermal shutdown protection with auto restart. Circuit breaker protects against overcurrent and reverse battery faults. Dedicated battery charging circuit prevents overvoltage on locking devices. Expandable up to 16 outputs; Class 2 power limited outputs. Available with a single relay fire trigger or individually fire trigger relayed outputs. MagnaCare lifetime replacement, no fault warranty. Supports up to two (2) sealed gel, AGM or wet lead acid batteries. High efficiency: 90% at 24V output, full load. Operating temperature is from -4 to +122F [-20 to +50C].

Attributes

Ship via: Can Ship UPS

Alternate Codes: AQD6-8F8R1, AQD68F8R1

Amperage: 6 Amp

Baa Qualified: Yes

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Country of Origin: Usa

Depth: 4.75

Distribution Board Quanity: 8 Distribution Boards

Door Application: Power Supplies

Finish: White

Finish Description: Applied

Fire Alarm Interface: Yes

Fire Rated: No

Fuse Rating [ Amp]: 1

Fuse Type: Glass fuse

Height: 14

Limited Warranty: Lifetime

Maximum Operating Temperature (° F): 122

Minimum Operating Temperature (° F): -4

Monitoring Options: Yes

Number of Outputs: 8

Number of Relays: 8

Output Amps: 6 AMPS

Output Voltage: 12.5/25

Output Volts: 12/24 VDC

Power Supply Type: Switching

Relay Amperage: 1 Amp Each

Relay Number: 1 Relay

Restrictions: None

Series: Securitron Power Supplies

Subtype: Power Supply

Type: ACCESS CONTROL

Voltage: 12/24

Width: 14
