Securitron AQD6 Power Supply

Your Price: $238.26
Retail Price:$429.00
You Save:$190.74(44%)
Power Supply, 12/24VDC 6A, 1 Output
Part Number : STR_AQD6
Availability: 15176323 In Stock.

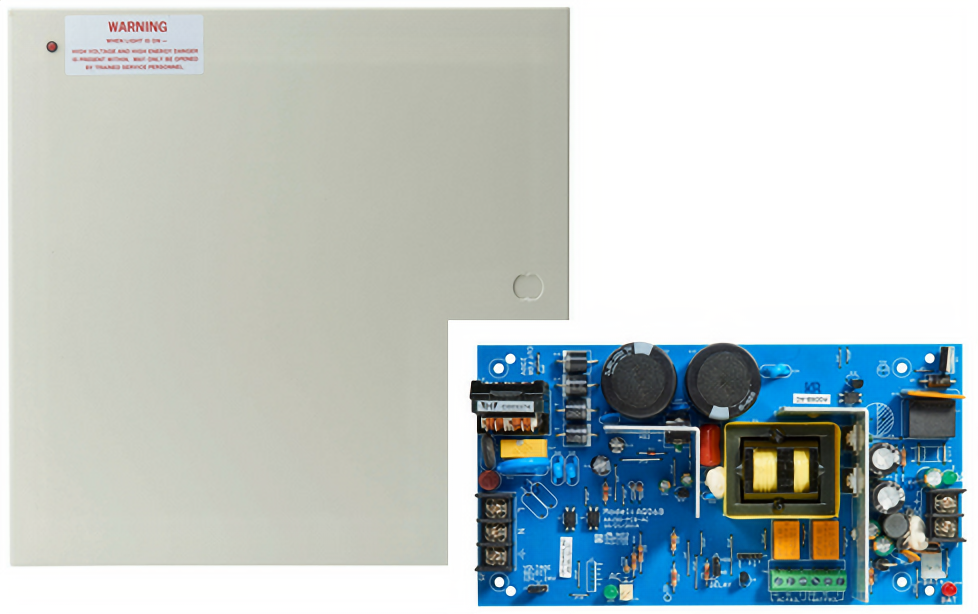

Securitron AQD6 Power Supply

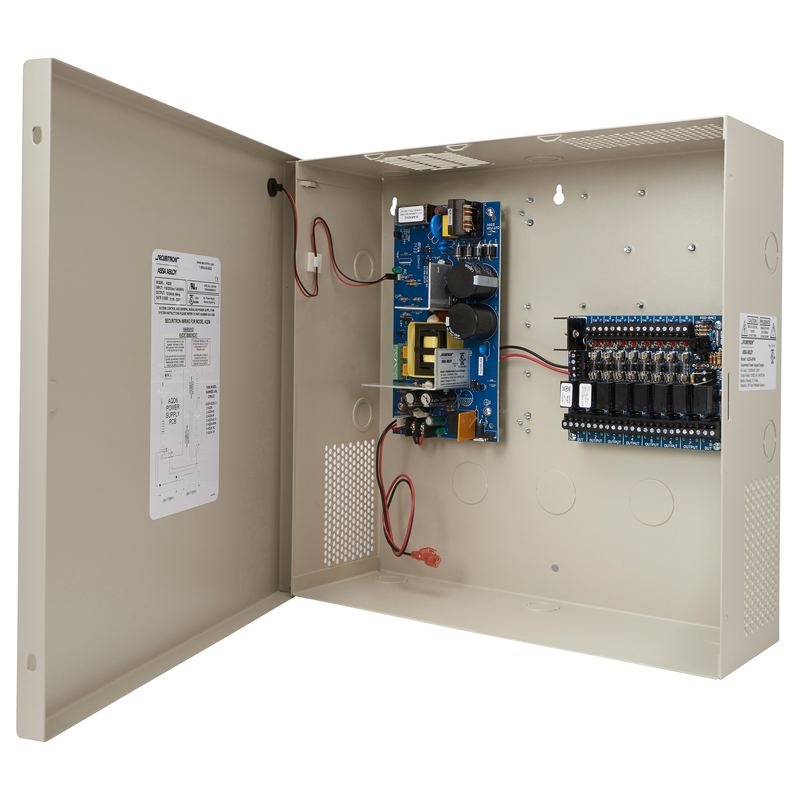

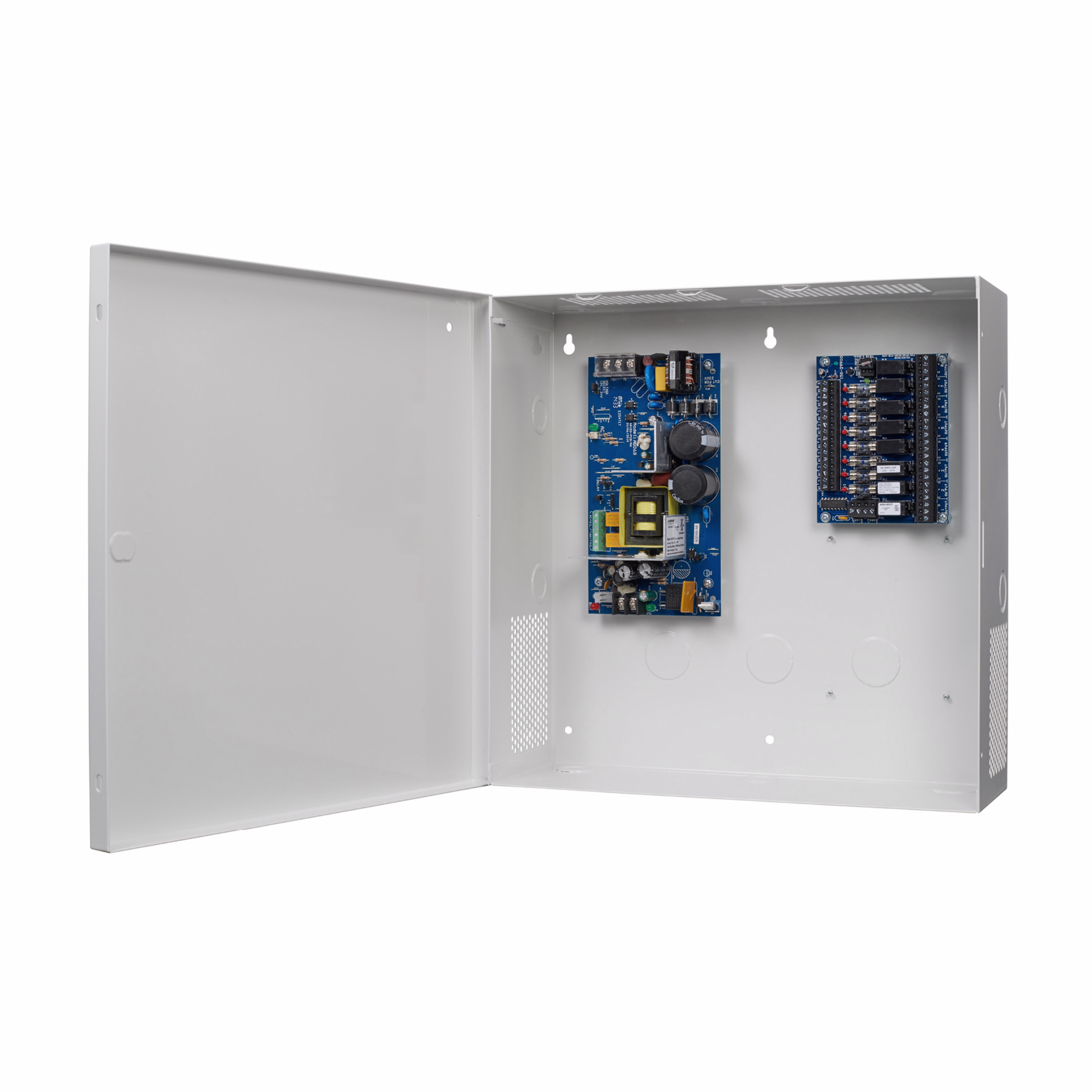

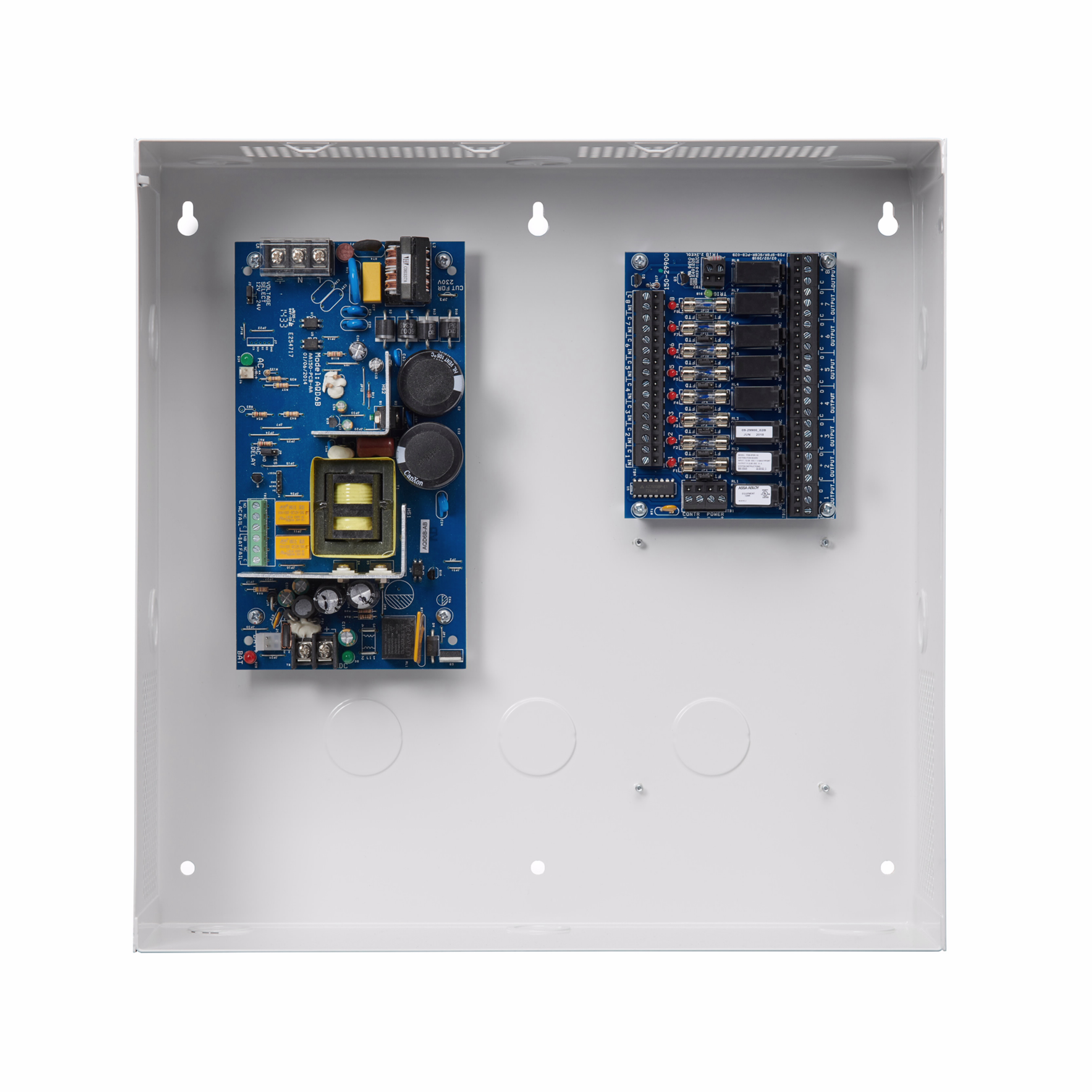

Assa Abloy Electronic Security Hardware - Securitron AQD6 Power Supply - 6A, 12/24 VDC, Supervised in Enclosure
  • Dual voltage 6 Amp 12 or 24VDC field selectable continuous output
  • Tolerates brownout or over voltage input ± 15% of nominal voltage
  • Thermal shutdown protection with auto restart
  • Circuit breaker protects against over current and reverse battery faults
  • Dedicated battery charging circuit enables faster battery charging even under full load

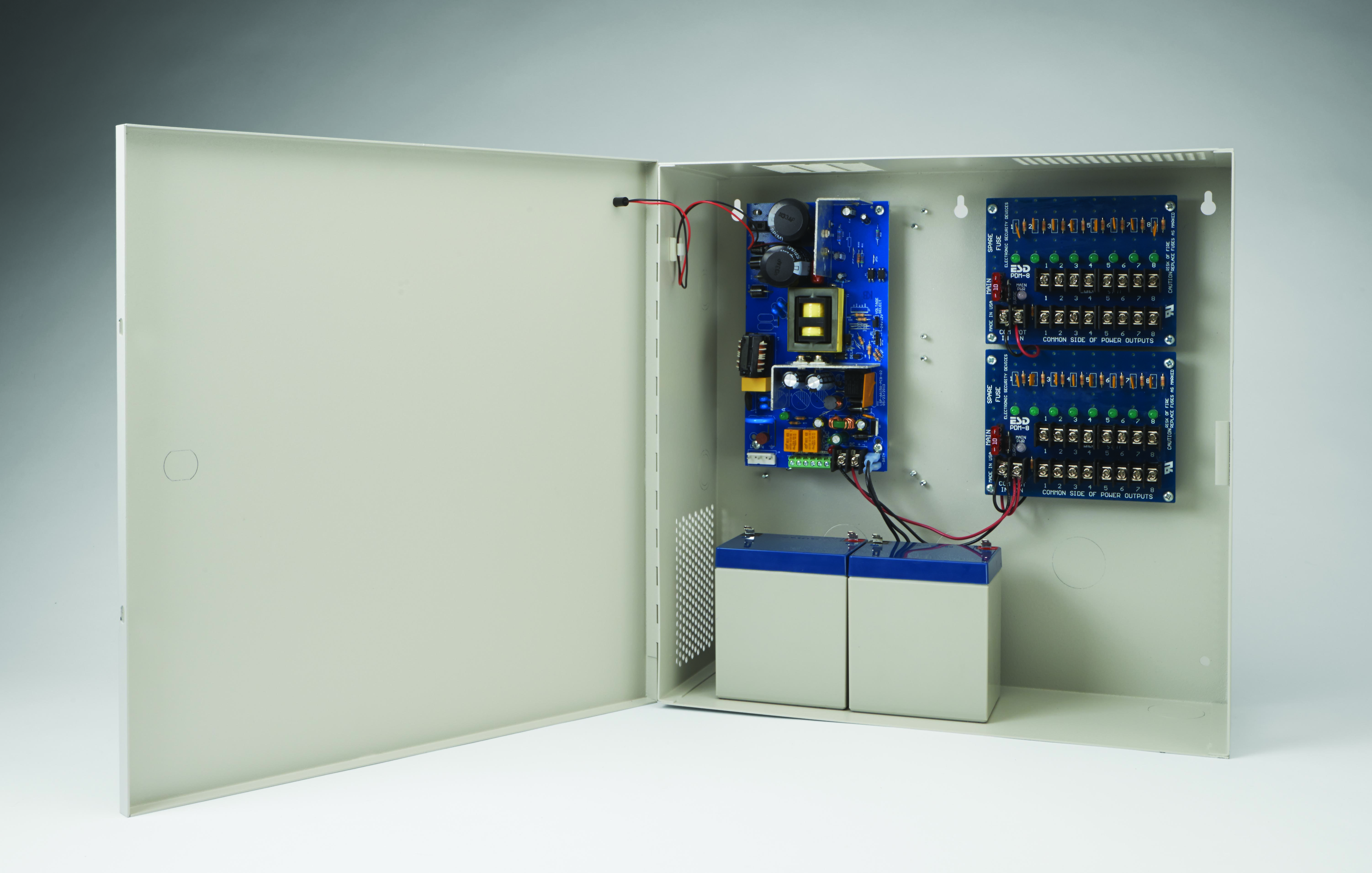

  • Expandable up to 16 independently controlled outputs; Class 2 power limited outputs available
  • Configurable access control input/ outputs with fire trigger and fuse/dry contact option, fire relay only or configurable outputs with fire relay input
  • MagnaCare® Lifetime Replacement No Fault Warranty
  • Dual Voltage 6 Amp 12 or 24 Volt DC Field Selectable Continuous Output
  • Tolerates Brownout or Overvoltage Input +/- 15% of Nominal Voltage
  • Thermal Shutdown Protection with Auto Restart
  • Circuit Breaker Protects Against Overcurrent and Reverse Battery Faults
  • MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

Attributes

Ship via: Can Ship UPS

Access Type: Power Supply

Alternate Codes: AQD6

Amperage: 6 Amp

Baa Qualified: Yes

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Country of Origin: Usa

Depth: 4.75

Door Application: Power Supplies

Finish: White

Finish Description: Applied

Fire Alarm Interface: No

Fire Rated: No

Height: 14

Limited Warranty: Lifetime

Maximum Operating Temperature (° F): 122

Minimum Operating Temperature (° F): -4

Monitoring Options: Yes

Number of Outputs: 1

Number of Relays: 0

Output Amps: 6 AMPS

Output Voltage: 12.5/25

Output Volts: 12/24 VDC

Power Supply Type: Switching

Restrictions: None

Series: Securitron Power Supplies

Subtype: Power Supplies

Type: Electronics

Upc: 784607043331

Voltage: 12/24

Voltage/ Amp Rating: 12 - 24V DC

Width: 14
