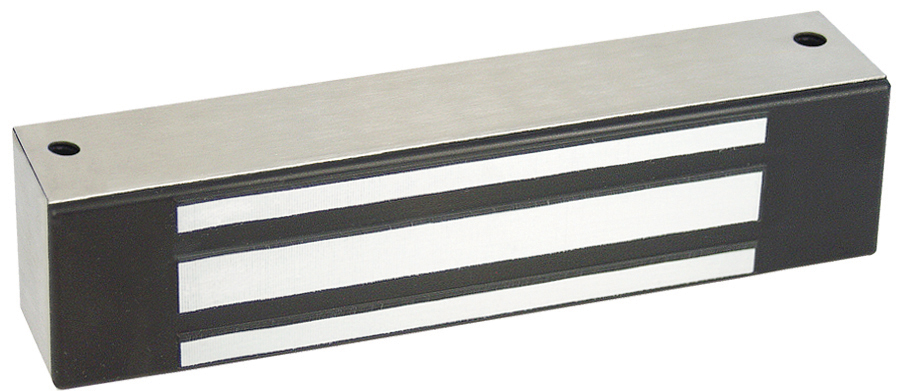

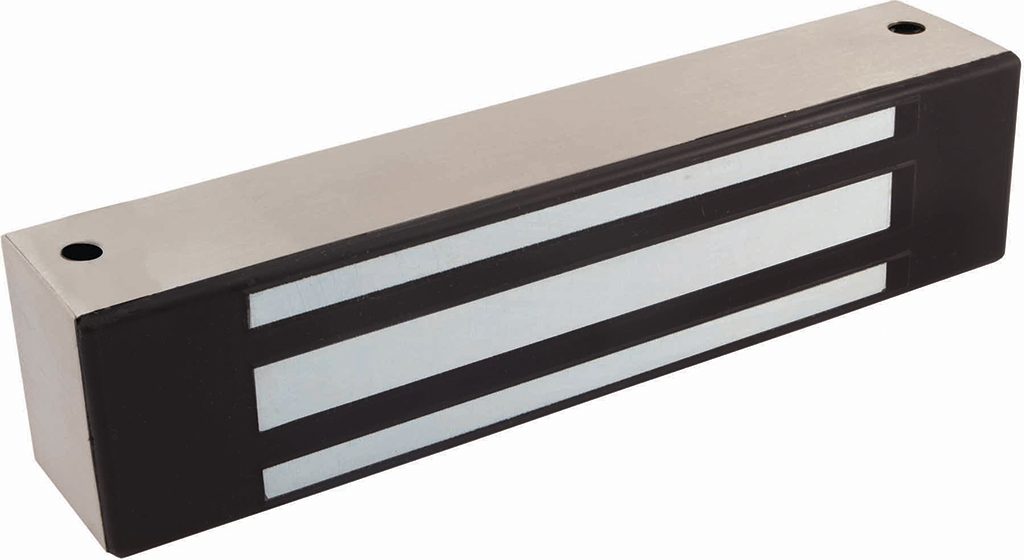

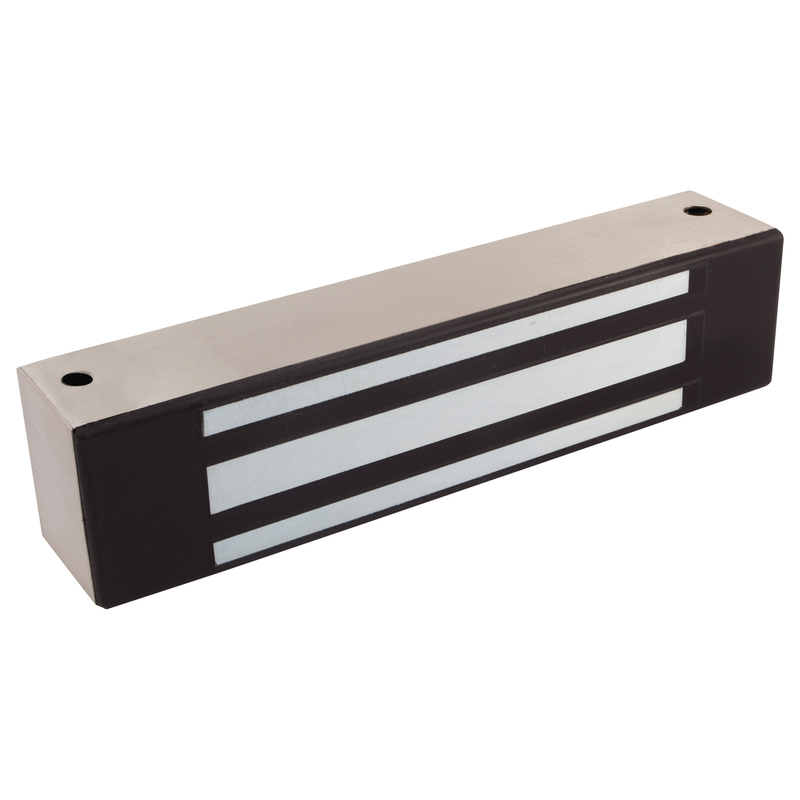

Securitron M32 12 Volt / 24 Volt DC Magnalock in a Satin Stainless Steel Finish delivers exceptional performance for both commercial and residential applications. Designed for versatility, this dual-voltage magnet can operate on either a 12V or 24V power supply, enhancing compatibility with various access control systems. Manufactured in an ISO9001 certified factory in Phoenix, AZ, the M32 Magnalock is built to last, featuring collapsing blind nuts that securely anchor the lock to the frame with an impressive 1000 pounds of tensile strength. This ensures reliable security, with a holding force of 600 pounds, making it ideal for high-traffic areas. The M32 is suited for doors with a thickness of 1-3/4 inches and measures 8" x 1-5/8" x 1-7/8". It is UL listed for both UL10C and UL294, guaranteeing its suitability for fire-rated applications. Additionally, Securitron backs this product with MagnaCare, offering the best warranty in the industry with a lifetime replacement policy-no questions asked. Whether used with a push button, reader, or sensor, the Securitron M32 is your go-to solution for reliable access control, ensuring peace of mind through quality and durability.
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 138864, M32
Baa Qualified: Yes
Category: Commercial Electronic Devices
Country of Origin: Usa
Current 12v DC (m A): 300
Current 24v DC (m A): 150
Dimension: 8" x 1-5/8" x 1-7/8"
Door Application: Maglocks
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Door Type: Inswing Door|Single Door|Double Door
Finish: Satin Stainless Steel
Finish Color: Satin Chrome
Finish Description: Satin Stainless Steel
Fire Rated: Yes
Fire Rating (hrs): 3
Frame Material: Wood|Metal|Aluminum Glass
Grade: Grade 3
Hazardous Material: NO
Holding Force: 600 lbs
Holding Force (lbs): 600
Limited Warranty: Lifetime
Maglock Type: Single Door
Magnet Depth (in): 1.625
Magnet Height (in): 1.875
Magnet Length (in): 8
Magnet Size: 1-7/8" x 8" x 1-5/8"
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Mounting: Surface Mount
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Options: Bond Sensor, Instant Release, Weather proof
Order_ Qty: 1
Outdoor Rated: Yes
PO date: 2024-10-16
Power Supply: Wired
Preload Capable: Yes
Product Type Used With: Push Button, Reader, or Sensor
Restrictions: None
Series: M32 Series
Size: 8" x 1-5/8" x 1-7/8"
Subcategory: Maglocks
Subtype: Magnetic Locks
Type: Electronics
Ul Listing Type: UL10C and UL294
Upc: 784607034384
Voltage: 12V DC, 24V DC
Weather Rating: Weather Resistant
