Securitron M32F 12 Volt / 24 Volt DC M32 Magnalock with Face Drilled Satin Stainless Steel Finish offers robust and reliable security for commercial applications. Designed to operate on dual voltage, this Magnalock can seamlessly switch between 12 or 24 volts, ensuring versatility and protection for your access control system. The M32F features a holding force of 600 pounds, providing exceptional strength to secure doors effectively. With dimensions of 8" x 1-5/8" x 1-7/8", it fits standard door thicknesses of 1-3/4", making it an ideal choice for various installations. Manufactured in an ISO9001 certified facility in Phoenix, Arizona, it reflects Securitron's commitment to quality and excellence. The lock’s installation is enhanced by collapsing blind nuts, which securely anchor the unit to the frame with 1000 pounds of tensile strength. Additionally, Securitron backs the M32F with their MagnaCare warranty, offering lifetime replacement with no fault, ensuring peace of mind for users. Whether used with a push button, reader, or sensor, the M32F is UL listed for both UL10C and UL294, affirming its safety and reliability in fire-rated applications. For dependable access control solutions, the Securitron M32F stands as a premier choice in architectural door hardware.
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 142085, M32F
Application: CM EL
Baa Qualified: Yes
Category: Commercial Electronic Devices
Clazz: SE
Color: Satin Stainless Steel
Country of Origin: Usa
Current 12v DC (m A): 300
Current 24v DC (m A): 150

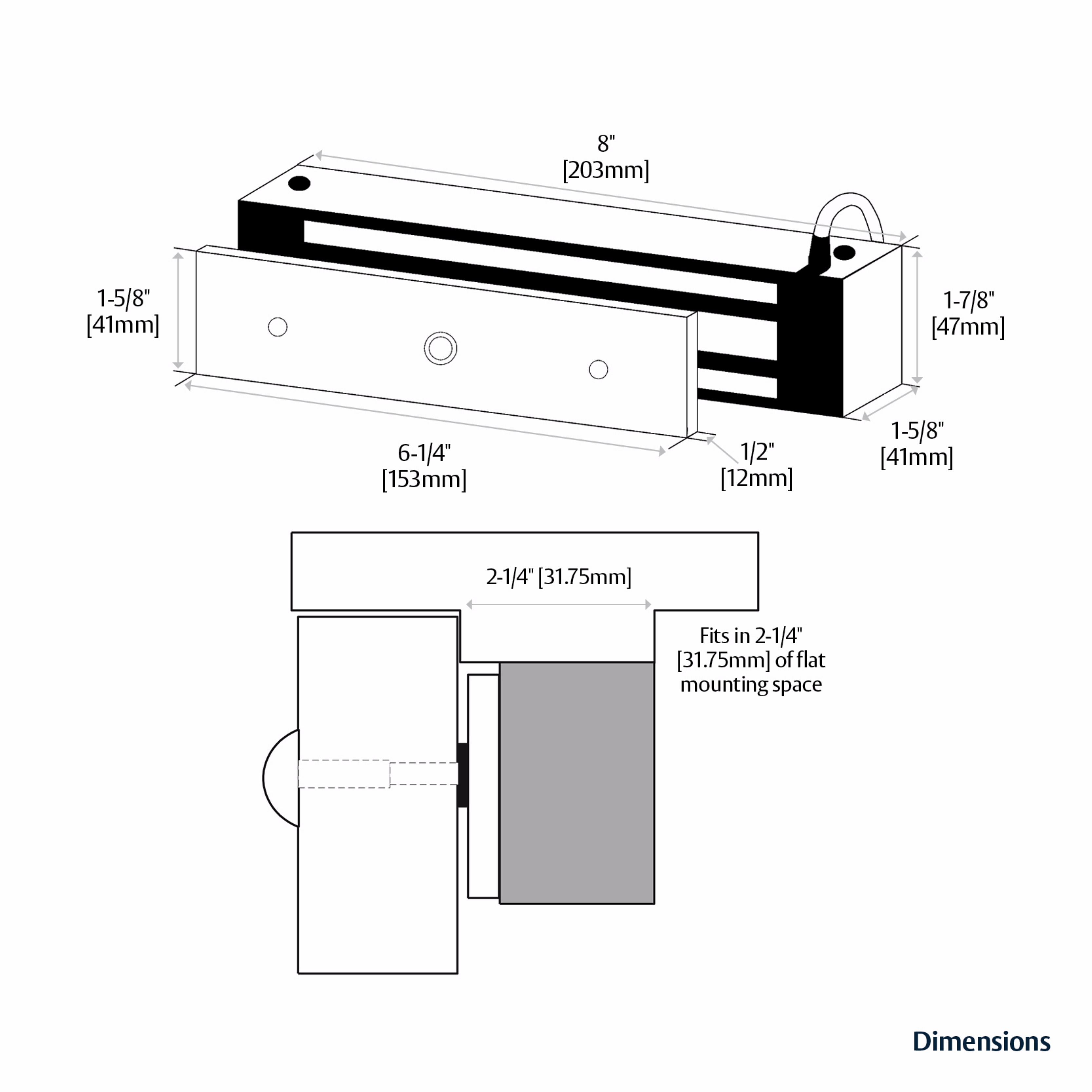

Dimension: 8" x 1-5/8" x 1-7/8"
Door Application: Maglocks
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Door Type: Inswing Door|Single Door|Double Door
Finish: Satin Stainless Steel
Finish Color: Satin Chrome
Finish Description: Satin Stainless Steel
Fire Rated: Yes
Fire Rating (hrs): 3
Frame Material: Wood|Metal|Aluminum Glass
Grade: Grade 3
Hazardous Material: NO
Holding Force: 600 lbs
Holding Force (lbs): 600
Item Class Description: 12 Volt / 24 Volt DC M32 Magnalock with Face Drilled
Item Type Keyword: Magnets
Limited Warranty: Limited Lifetime Warranty
Maglock Mounting: Face Drilled
Maglock Type: Single Door
Magnet Depth (in): 1.625
Magnet Height (in): 1.875
Magnet Length (in): 8
Magnet Size: 1-7/8" x 8" x 1-5/8"
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Mounting: Surface Mount
No Of Inners: 1
Number Of Inners: 1
Operating Voltage: 12VDC/24VDC
Options: Bond Sensor, Face Drilled
Order_ Qty: 1
Outdoor Rated: Yes
PO date: 2024-09-28
Power Supply: Wired
Preload Capable: Yes
Product Type Used With: Push Button, Reader, or Sensor
Restrictions: None
Series: M32 Series
Size: 8" x 1-5/8" x 1-7/8"
Subcategory: Maglocks
Subtype: Magnetic Locks
Type: Electronics
Ul Listing Type: UL10C and UL294
Upc: 78460703440700
Voltage: 12V DC, 24V DC
Weather Rating: Weather Resistant
