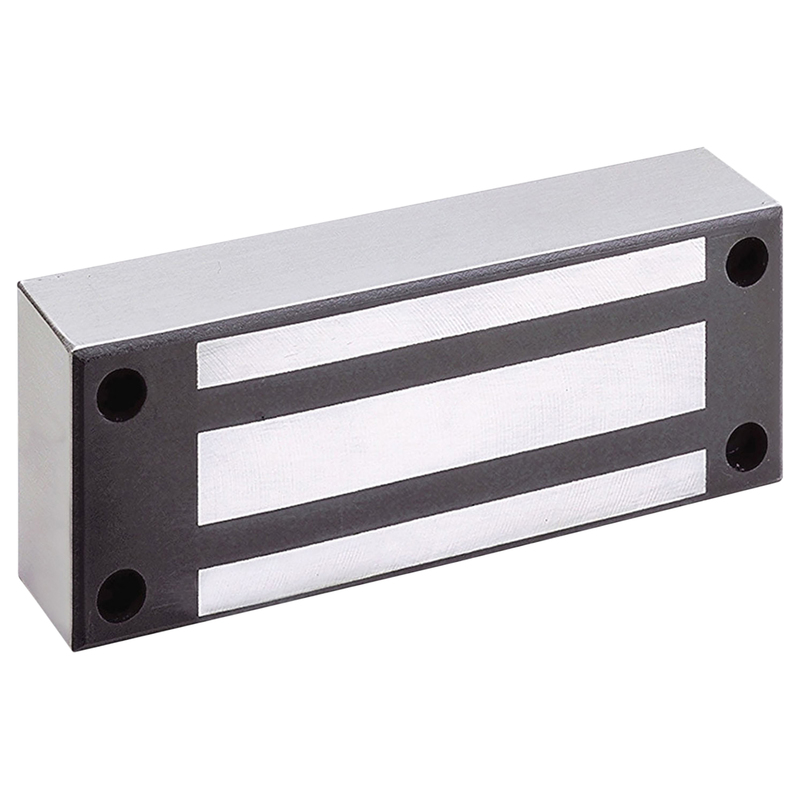

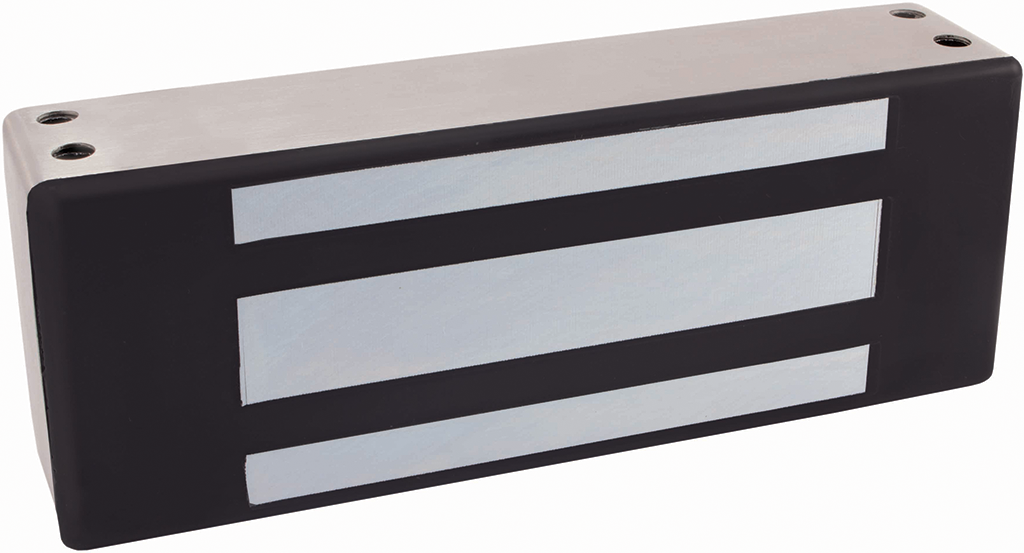

Securitron M62B M62 Magnalock 12/24V DC, MBS Satin Stainless Steel FinishSecuritron M62B 12 Volt / 24 Volt DC Magnalock with MBS Satin Stainless Steel Finish offers a reliable and robust locking solution for commercial applications. This dual-voltage maglock expertly operates on either a 12 or 24 volt power supply, ensuring compatibility with various setups while protecting the lock itself. Crafted in an ISO9001 certified factory in Phoenix, AZ, this device features a satin stainless steel finish that not only enhances aesthetics but also provides durability. With a holding force of 1200 pounds and collapsing blind nuts that securely anchor the Magnalock to the frame, you can trust its performance under challenging conditions. The M62B is designed for doors with a thickness of 1-3/4 inches, making it a versatile choice for numerous environments. Additionally, it is fire-rated, ensuring safety compliance. Securitron backs the M62B with MagnaCare, offering the industry's best warranty-lifetime replacement with no fault, no questions asked. Whether integrating with push buttons, readers, or sensors, this maglock guarantees reliable security for your entry points. World-class technical support is available to assist with hardware selection, wiring, and troubleshooting, ensuring you have the guidance needed for a successful installation.
12 Volt / 24 Volt DC M62 Magnalock with MBS Satin Stainless Steel Finish
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
- Holding Force: 1200 lbs. (544 kg)
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F (-40 to +60C)
- Shipping Weight: 11 lbs.
- Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
- World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
- Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
- Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Attributes
Ship via: Can Ship UPS
Alternate Codes: 142453, M62B
Application: CM EL
Baa Qualified: Yes
Category: Commercial Electronic Devices
Clazz: SE
Color: Satin Stainless Steel
Country of Origin: Usa
Dimension: 8" x 3" x 1-3/4"
Door Application: Maglocks
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Stainless Steel
Finish Color: Satin Chrome
Finish Description: Satin Stainless Steel
Fire Rated: Yes
Grade: Grade 1
Hazardous Material: NO
Holding Force: 1200 lbs
Item Class Description: 12 Volt / 24 Volt DC M62 Magnalock with MBS
Item Type Keyword: Magnets
Limited Warranty: Limited Lifetime Warranty
Maglock Options: BondSTAT Monitor
Maglock Type: Single Door
Magnet Size: 3" x 8" x 1-3/4"
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Mounting: Surface Mount
No Of Inners: 1
Number Of Inners: 1
Operating Voltage: 12VDC/24VDC
Options: Bond Sensor, Instant Release
Order_ Qty: 1
Power Supply: Wired
Product Type Used With: Push Button, Reader, or Sensor
Restrictions: None
Series: M62 Series
Size: 8" x 1-3/4" x 3"H
Subcategory: Maglocks
Subtype: Magnetic Locks
Switch Type: MBS
Type: Electronics
Ul Listing Type: UL10C and UL294
Upc: 78460703526866
Voltage: 12V DC, 24V DC
Weather Rating: Weather Resistant
