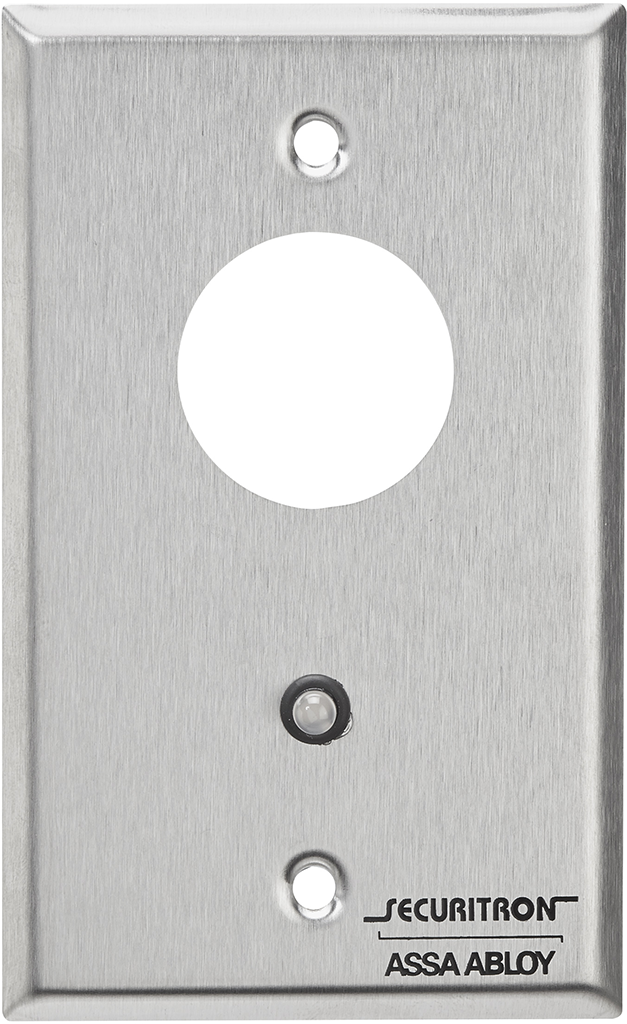

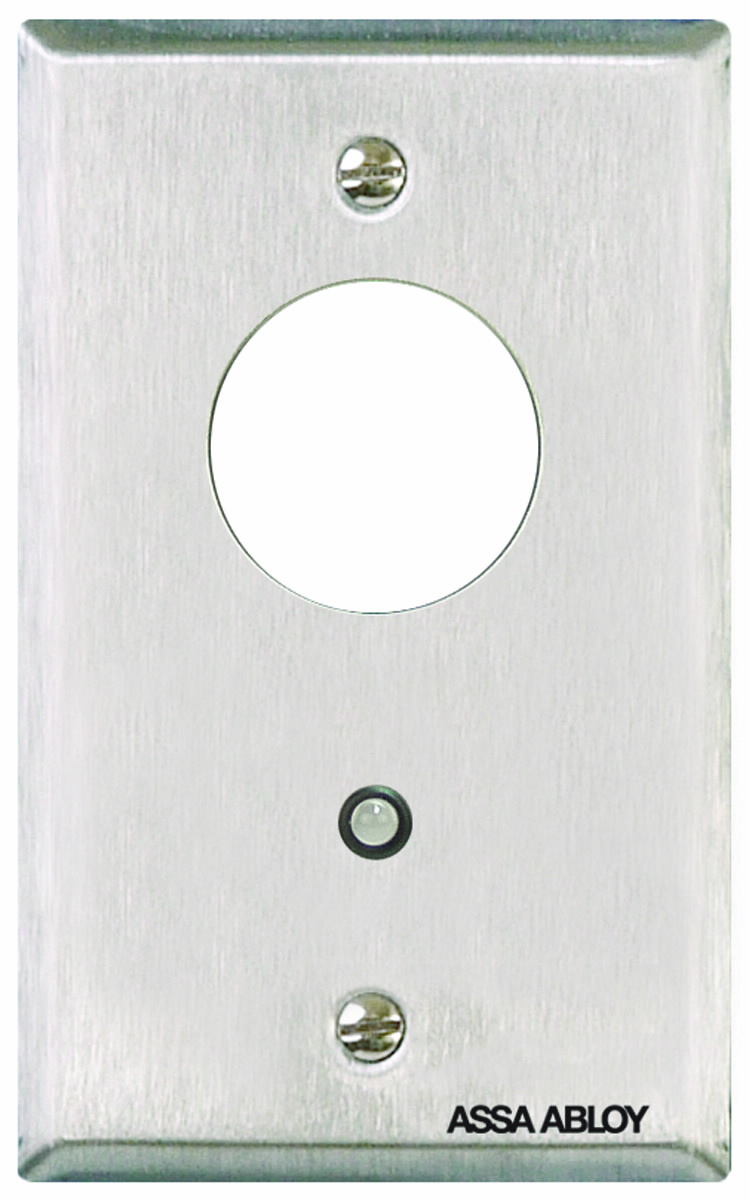

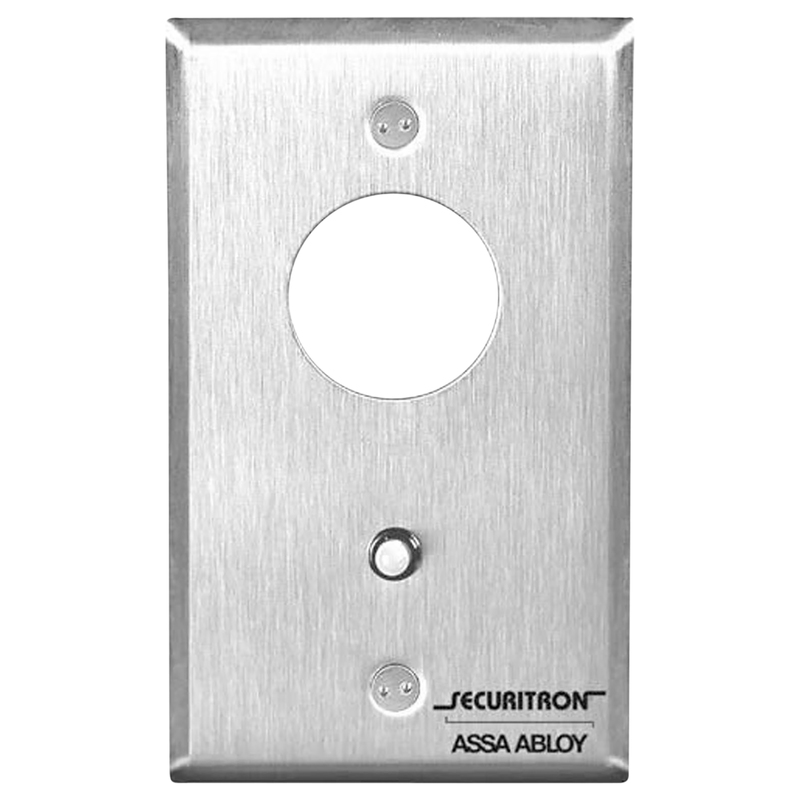

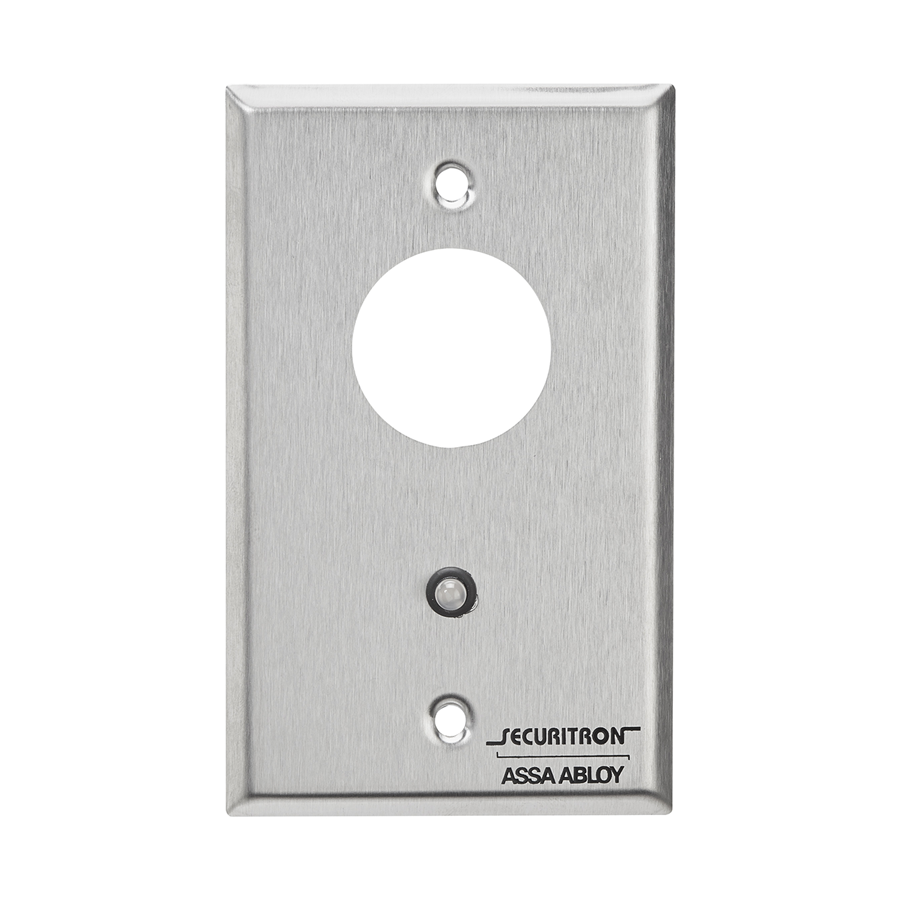

Assa Abloy Electronic Security Hardware - Securitron MKA Single Gang Alternate Mortise Key Switch Satin Stainless Steel Finish
Attributes
Ship via: Can Ship UPS
Alternate Codes: 132856, MKA
Amps: 5
Application: CM EL
Audible Indicator: Optional
Baa Qualified: Yes
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Clazz: SE
Color: Satin Stainless Steel
Contact Action: Momentary or Alternate
Country of Origin: Usa
Depth: 0.625
Device Options: Keyswitch
Door Application: Pushplates/Buttons & Switches
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Fire Rated: No
Height: 4.5
Illumination: Yes
Item Class Description: Single Gang Alternate Mortise Key Switch
Item Type Keyword: Switch
LED: Bi-color
Limited Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Single Gang, Surface Mount
Mounting Plate Size: 1 Gang
Number Of Inners: 1
Product Dimension: 2-3/4" x 4-1/2"
Pushplate Style: Plate Size- 4-1/2in x 2-3/4in, Single Gang
Relay Action: Maintained (AA)
Relay Form: SPDT
Restrictions: None
Series: MK
Size: 2-3/4" x 4-1/2"
Style: Mortise Cylinder Key Switch
Subtype: Electronic Accessories
Switch: SPDT or DPDT
Switch Mode: Alternate Action
Switch Type: Mortise Cylinder Key Switch
Type: SPDT
Upc: 78460702306700
Voltage: 12/24 VDC
Voltage/ Amp Rating: 12 - 24V DC
Weather Resistance: Indoor use only
Width: 2.75
