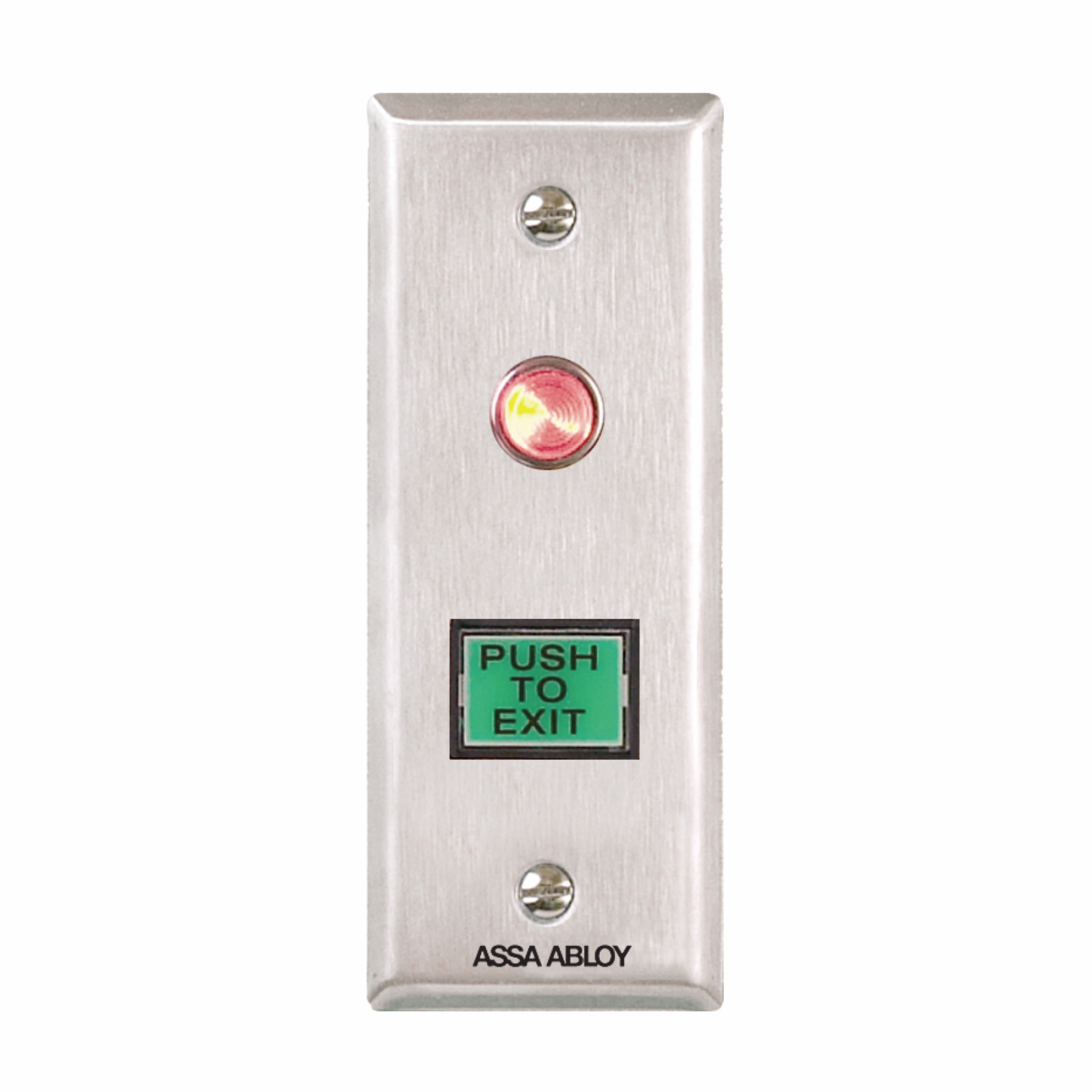

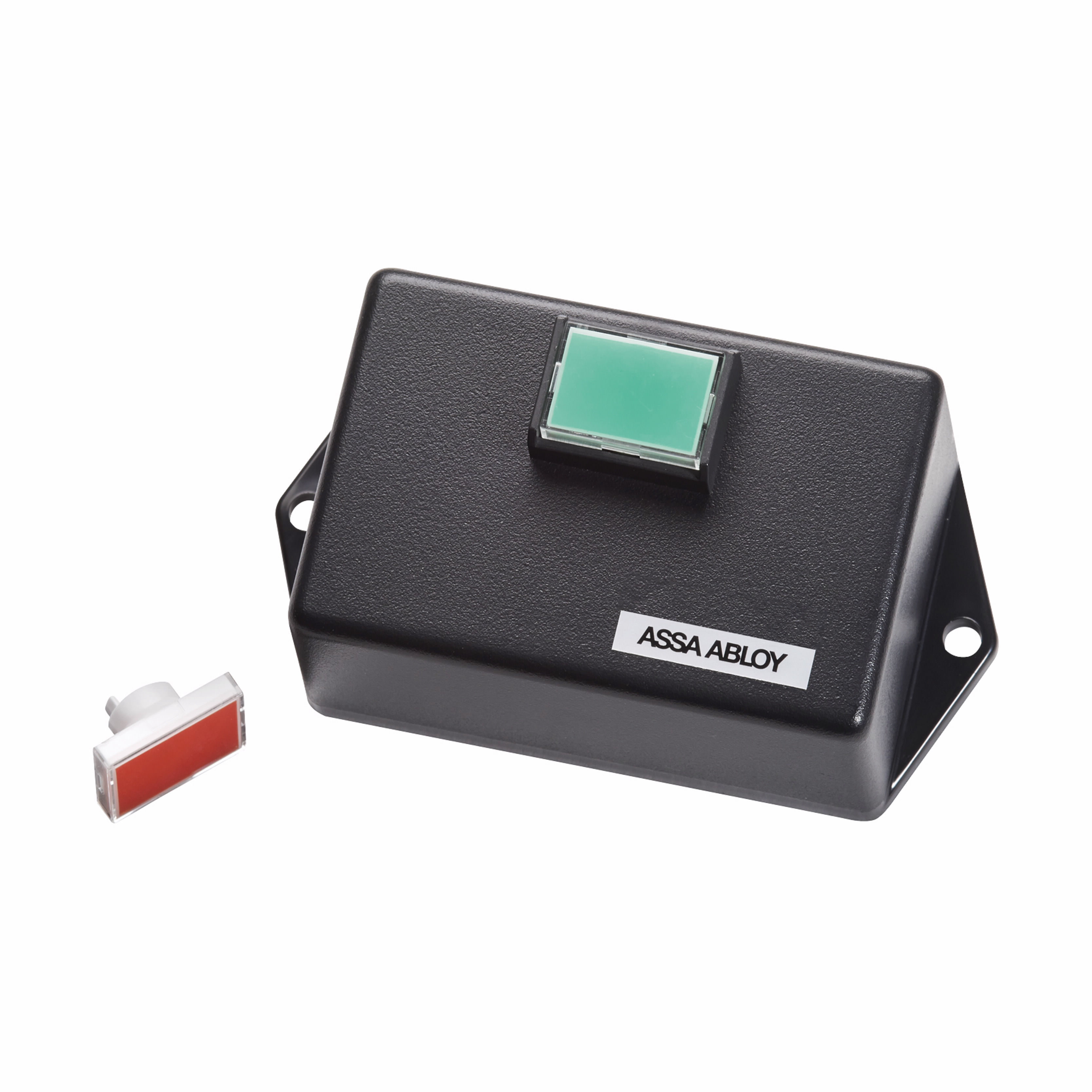

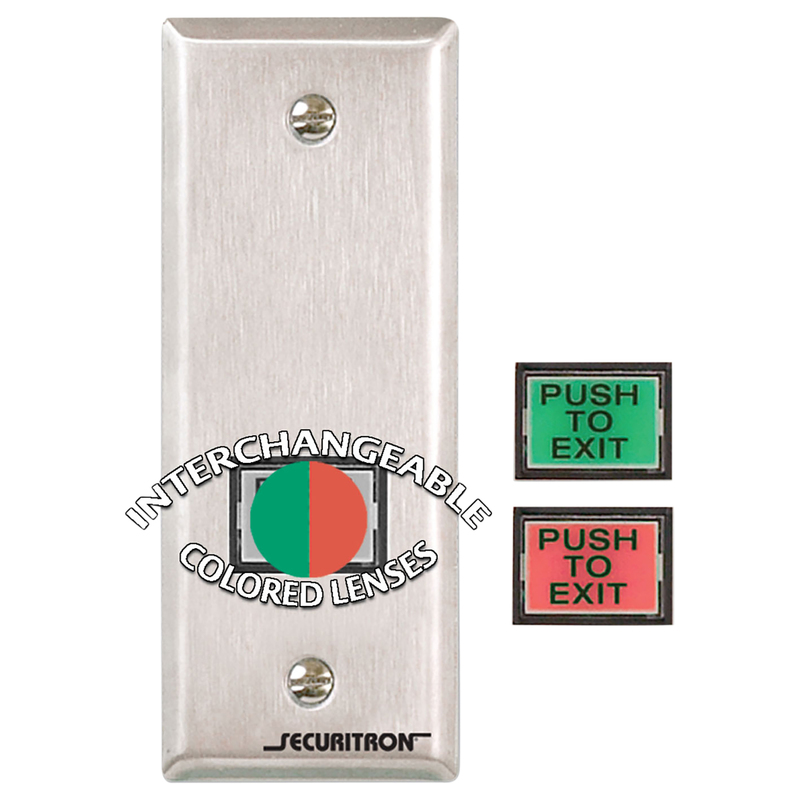

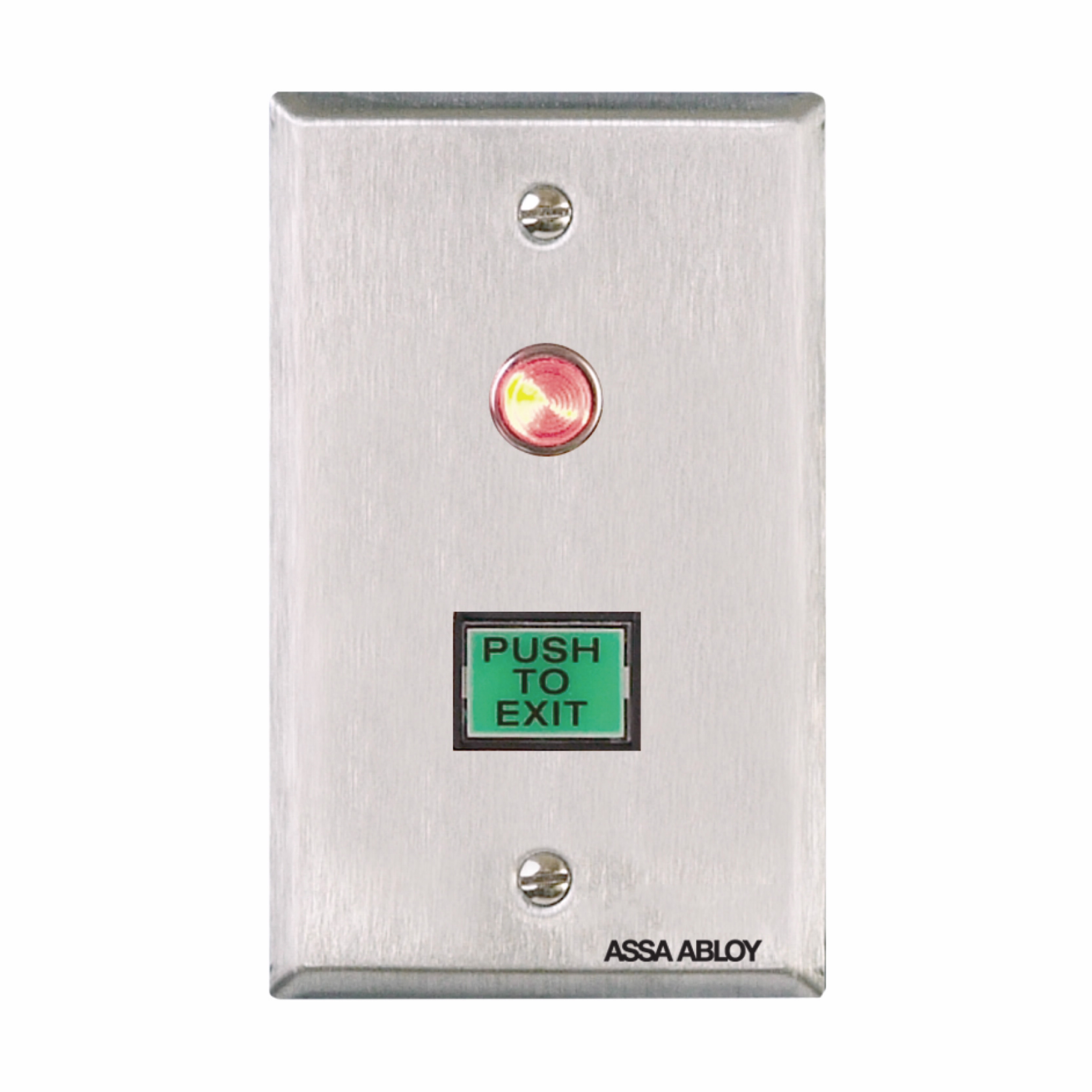

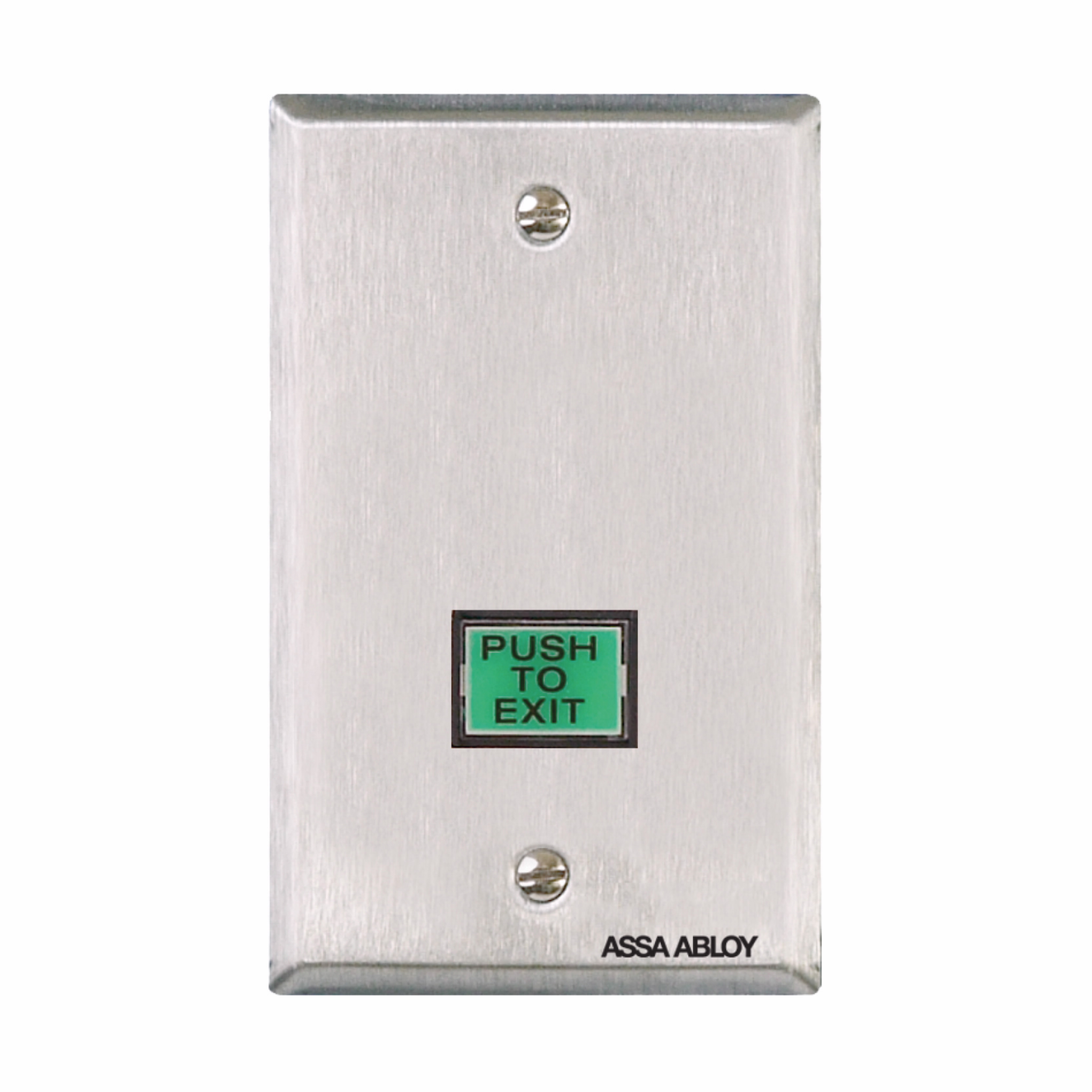

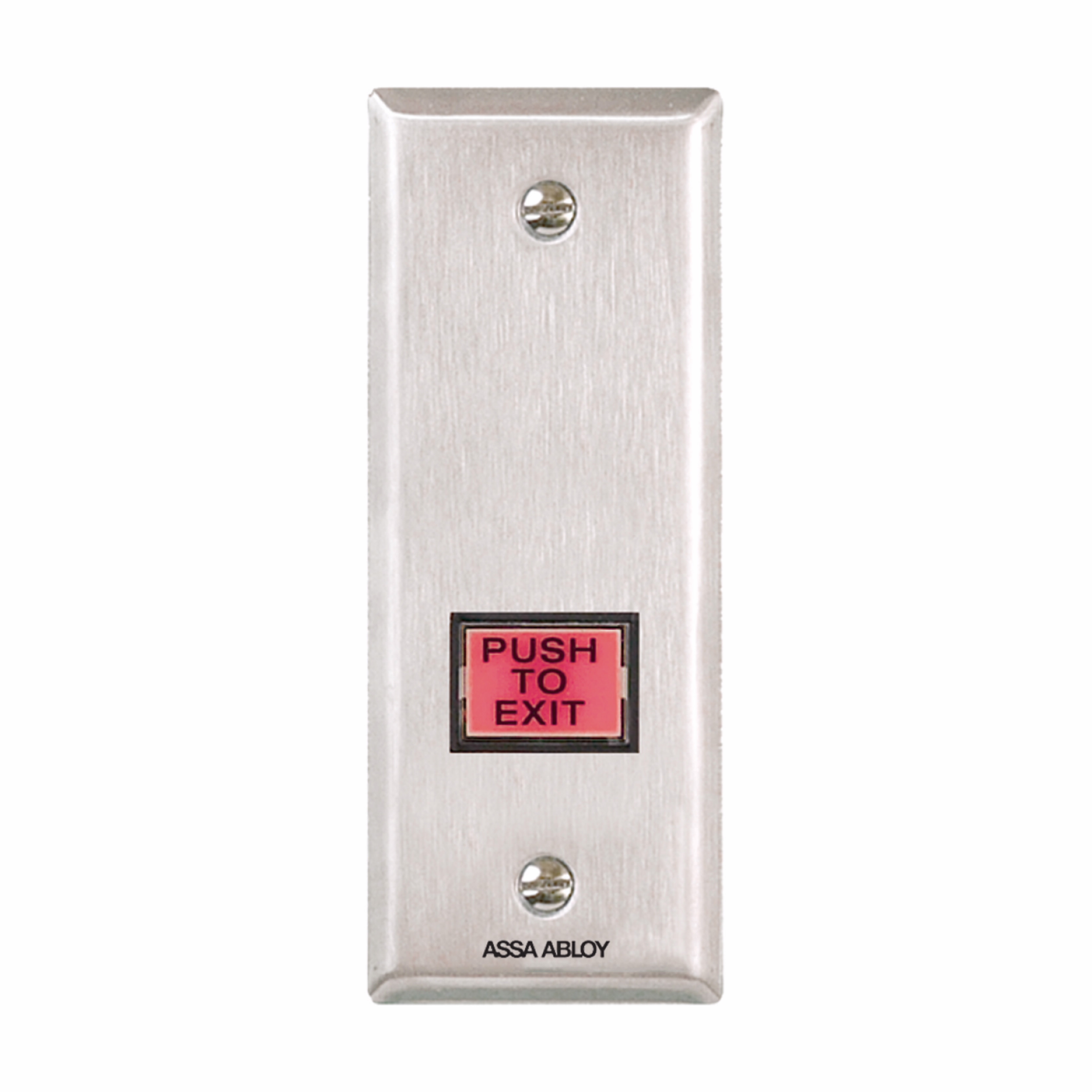

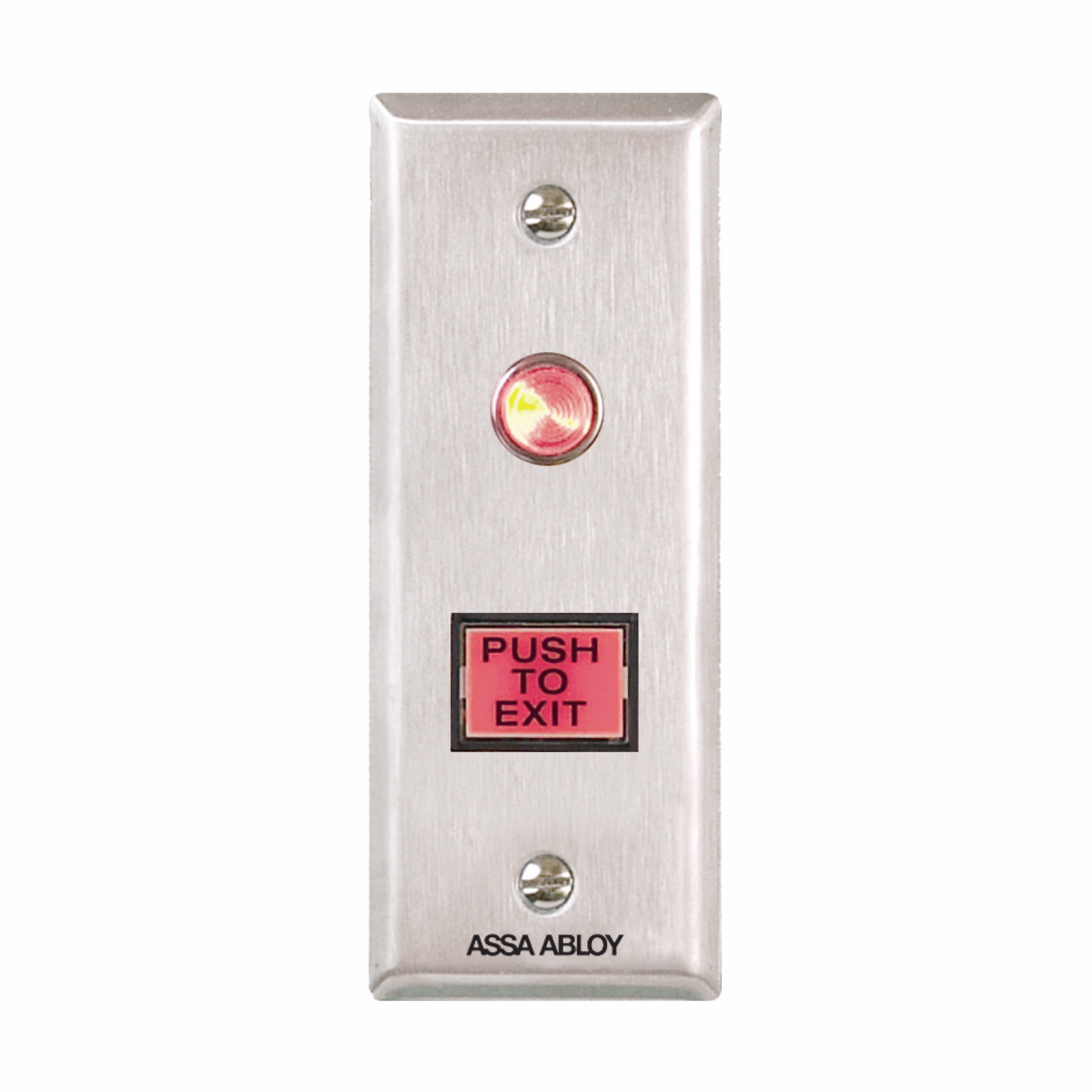

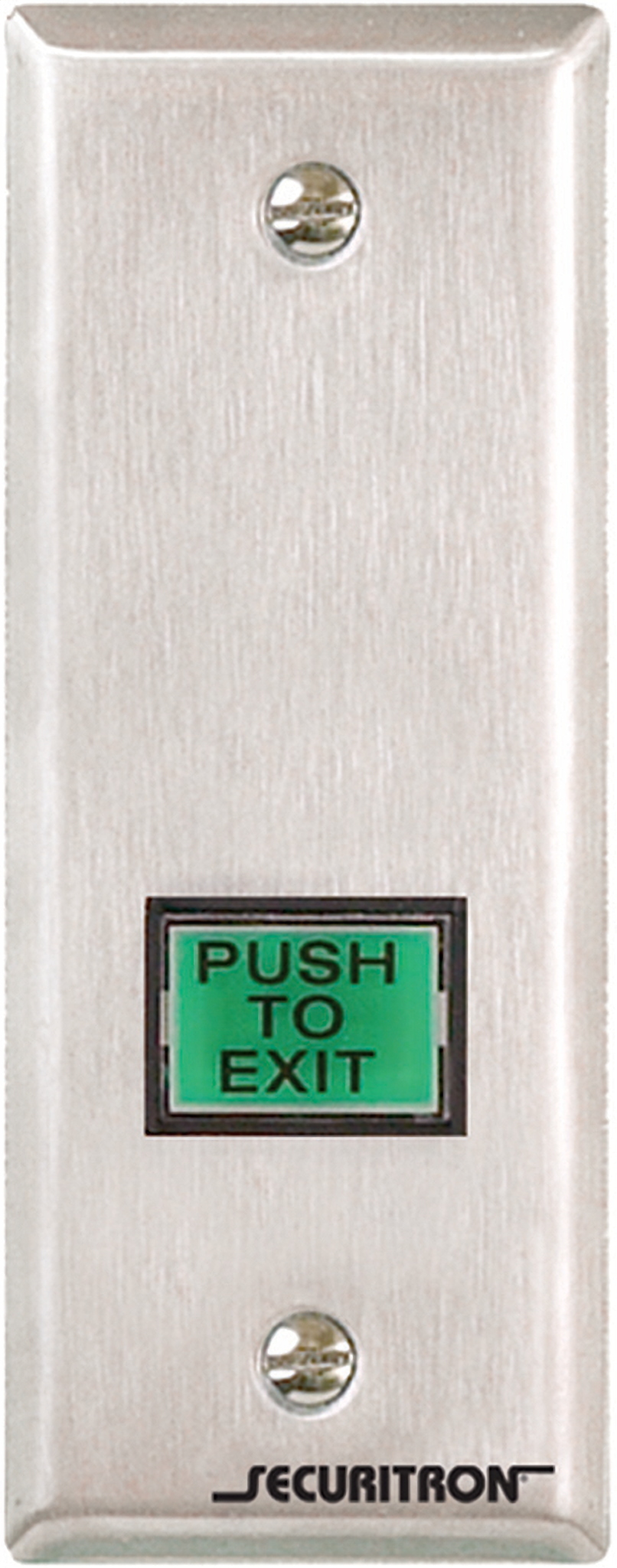

High-quality Securitron Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, Securitron push buttons can release any maglock, alone or in conjunction with door closers and other hardware.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 127213, PB3EN
Amps: 3
Baa Qualified: Yes
Button Color: Green or Red button
Button Label: PUSH TO EXIT or ADA symbol
Button Size: 1 In.
Button Type: 3/4in Rectangle Button, Green/Red, "PUSH TO EXIT"
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Contact Action: Alternate or Momentary
Country of Origin: Usa
Current 12v DC: 29
Current 24v DC: 40
Depth: 0.625
Door Application: Pushplates/Buttons & Switches
Finish: 630/US32D
Finish Description: Satin Stainless Steel
Fire Rated: No
Height: 4.5
Illumination: Optional
LED: Optional
Limited Warranty: Lifetime
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Mullion Mount, Surface Mount
Mounting Plate Size: Narrow Jamb
Options: Non-Illuminated
Pushplate Style: Narrow Stile, Plate Size- 4-1/2in x 1-3/4in, Single Gang
Relay Action: Momentary (MOM)
Relay Form: DPST
Restrictions: None
Series: PB
Size: 1-3/4" x 4-1/2"
Style: Square Push Button
Subtype: Pushbutton
Switch: Field Selectable- DPST/ DPDT
Switch Mode: Momentary
Switch Type: Push Button Switch
Type: DPDT, DPST
Voltage/ Amp Rating: 12 - 24V DC
Weather Resistance: Indoor use only
