Securitron PDB-4F1 Power Supply

Your Price: $34.25
Retail Price:$55.00
You Save:$20.75(38%)

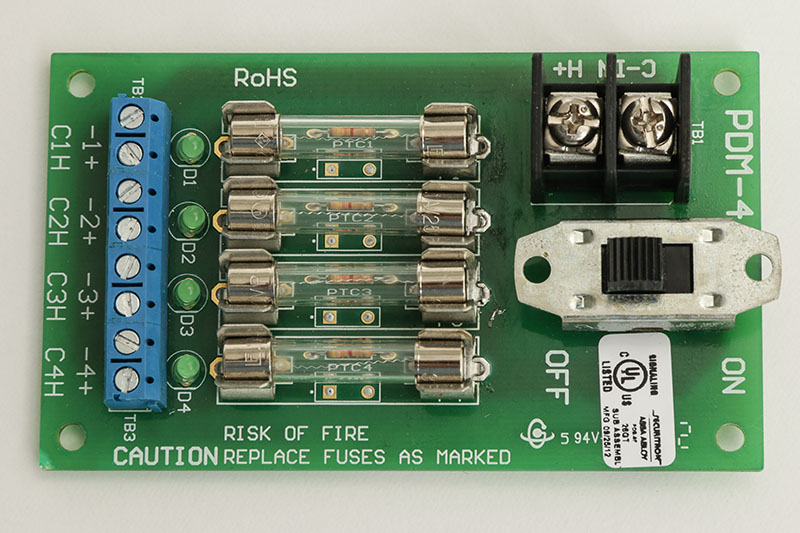

Power Distribution Board, 4 Fused outputs, 1 Amp Each
Part Number : STR_PDB4F1
Availability: 15176190 In Stock.
Securitron PDB-4F1 Power Supply

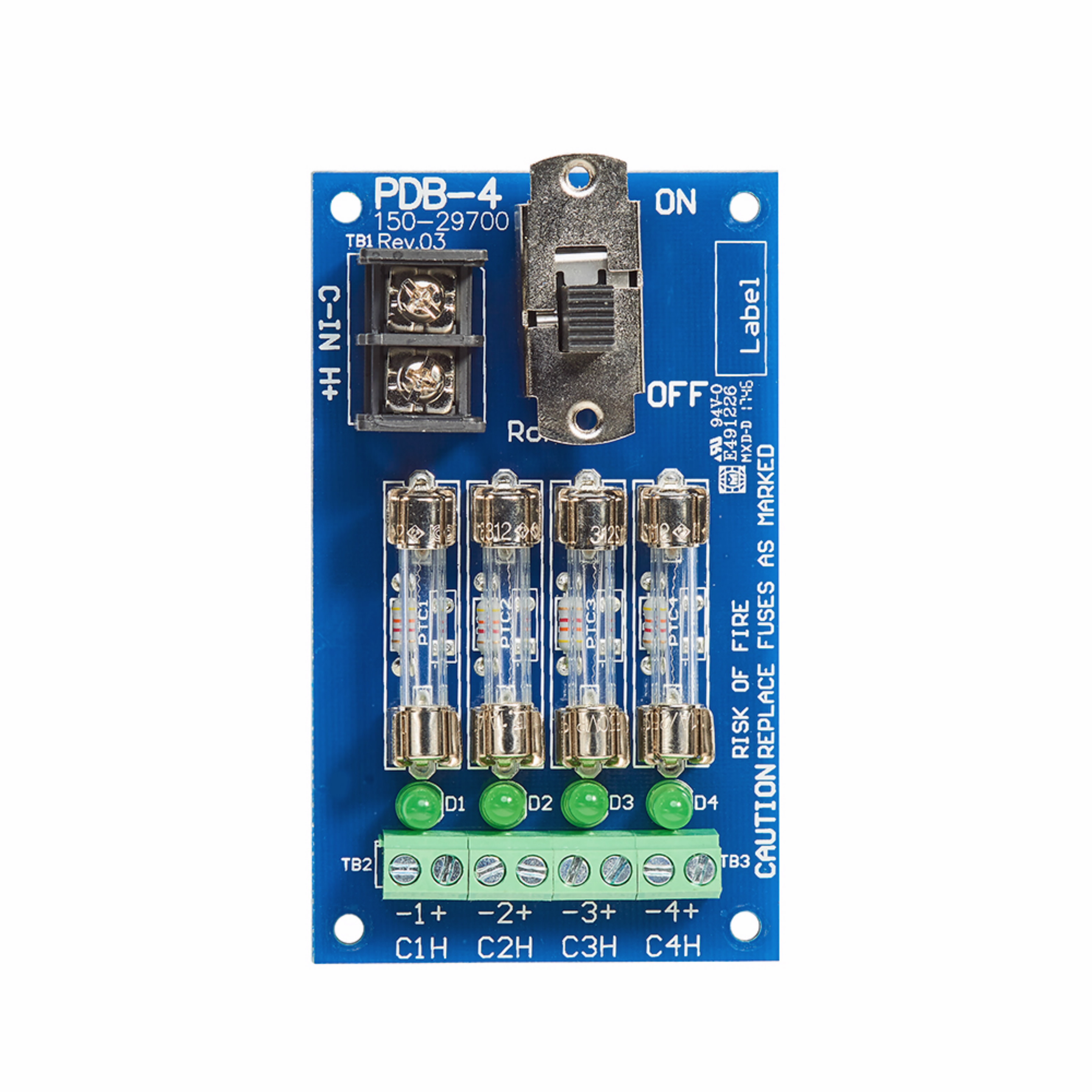

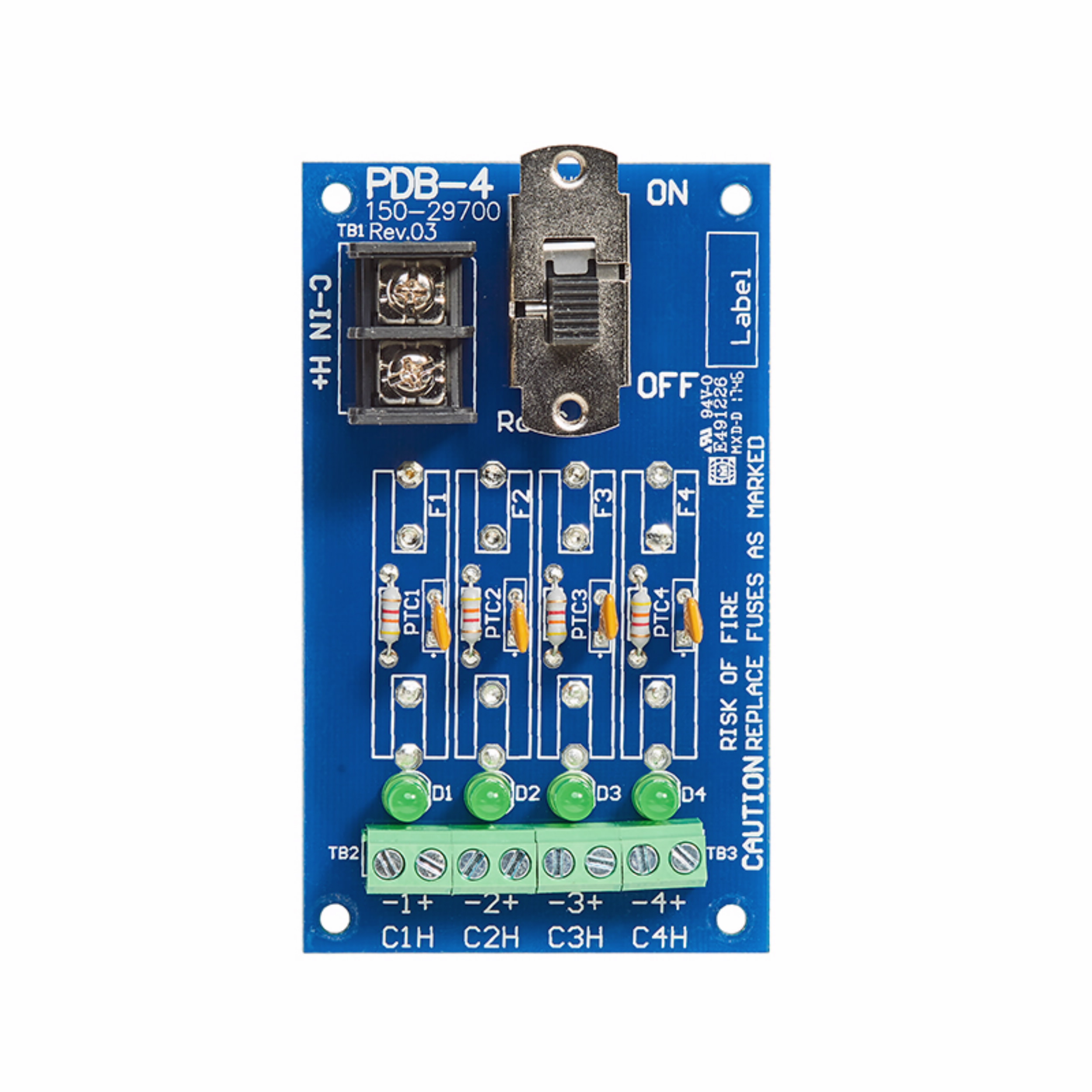

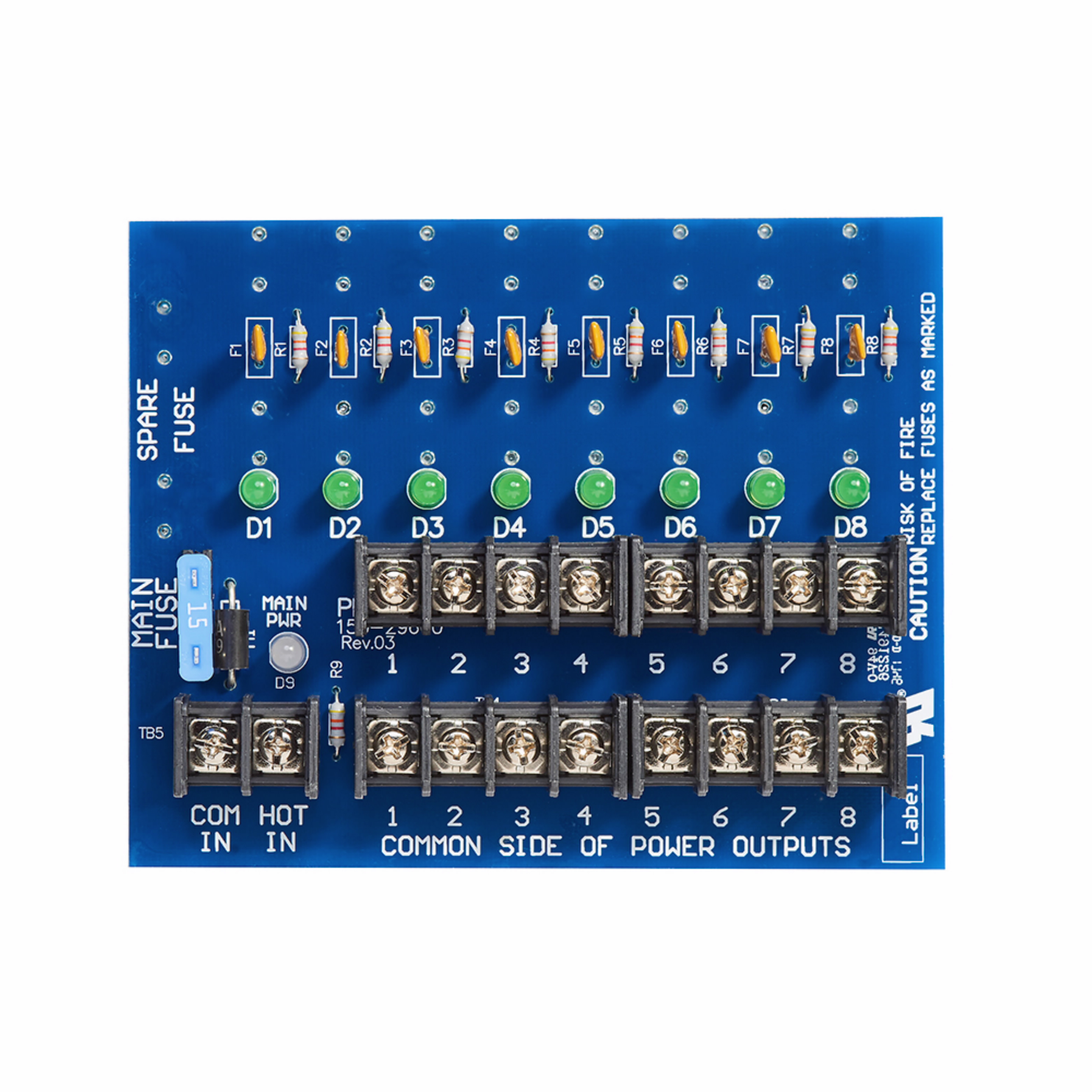

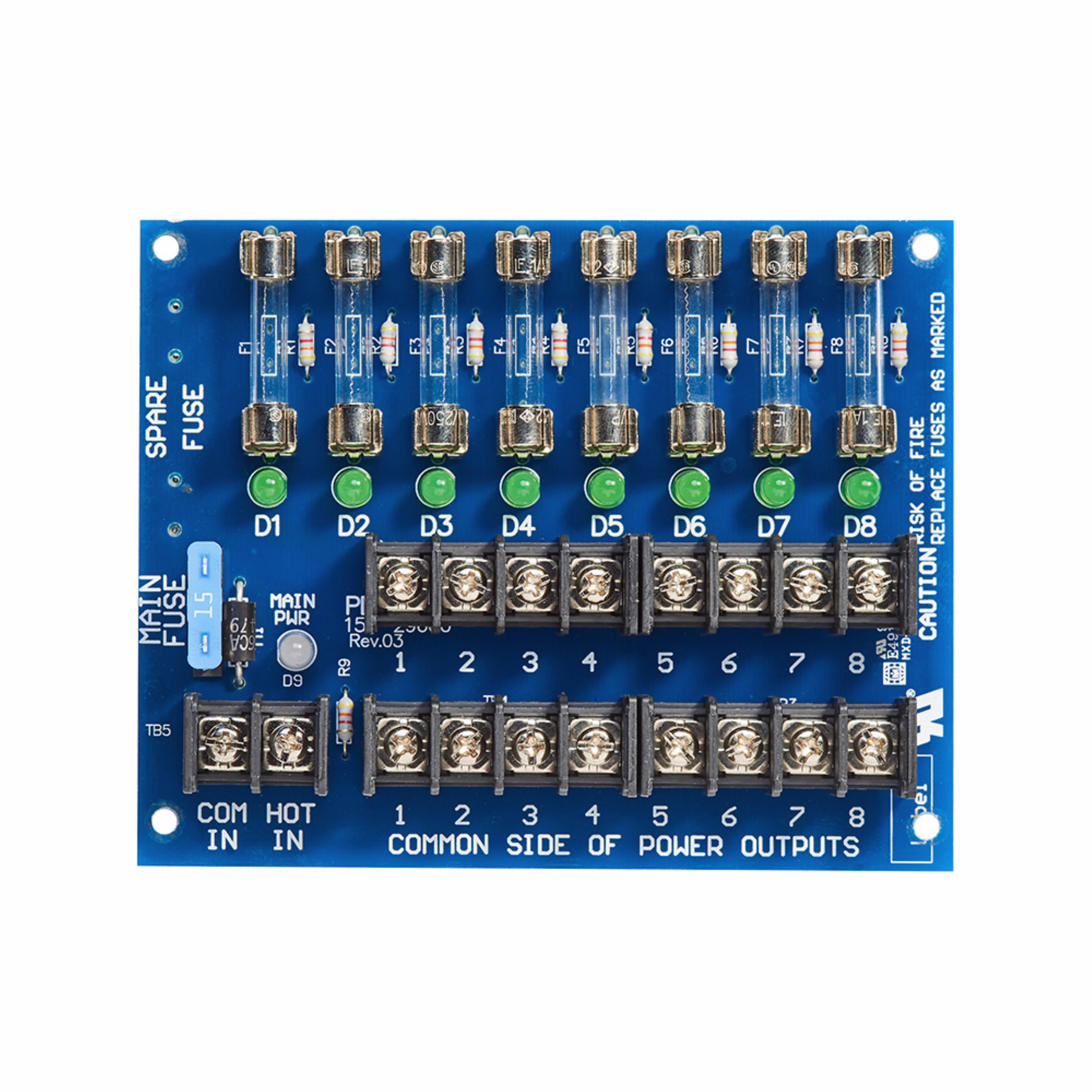

Securitron AccuPower Power Distribution Boards (PDB) split the primary AC or DC output from a power supply into multiple outputs of the same voltage type to separate equipment onto individual circuits. Each output has a status LED indicator. Main input has a status LED indicator. 12 or 24V output (based on power supply output). Accepts AC or DC input/provides same output. PDB-4 has an on/off power switch. PDB-8 has a main power indicator that indicates AC, DC or reverse DC input. RoHs lead-free. Made in USA. Individually fused. Separate fuse for main input surge protection, standard automotive ATO sizes. PTC circuit breakers rated holding current at 130¡ F. Accepts AC or DC input up to 32V. Outputs rated Class 2 power limited. Fuses for individual outputs are standard 3AGC.

Attributes

Ship via: Can Ship UPS

Alternate Codes: PDB-4F1, PDB4F1

Baa Qualified: Yes

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Country of Origin: Usa

Distribution Board: Glass Fused Outputs, Power Distribution Board

Distribution Output Number: 4

Door Application: Power Supplies

Fire Rated: No

Fuse Rating [ Amp]: 1

Fuse Type: Glass fuse

Limited Warranty: Lifetime

Number of Outputs: 4

Relay Amperage: 1 Amp Each

Restrictions: None

Series: Securitron Power Supplies

Subtype: Power Supply

Type: ACCESS CONTROL
